JCT-3620A, 3" 4-BOLT CHIPPING HAMMER R

4-Bolt Chipping Hammers

<< Back

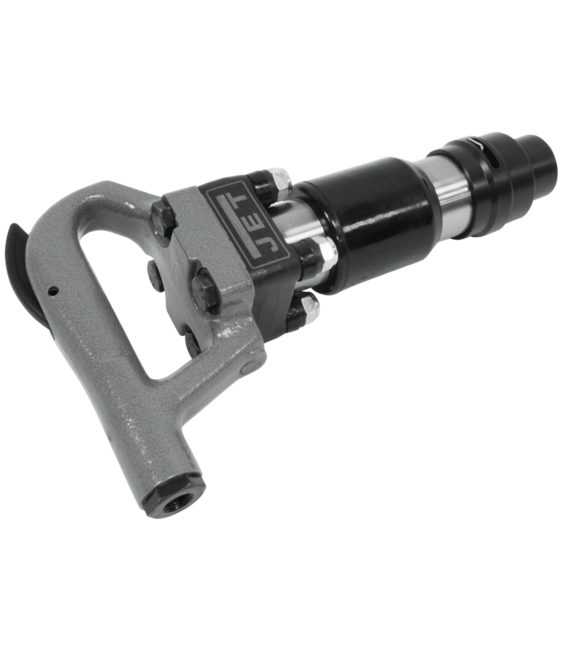

JCT-3620A, 3" 4-BOLT CHIPPING HAMMER R
JCT-3620A, 3" 4-BOLT CHIPPING HAMMER RJCT-3620A, 3" 4-BOLT CHIPPING HAMMER R

JET Chipping hammers are available in two heavy-duty designs with multiple capabilities. The Four Bolt D handle model is designed for extra strength and provides better grip. The Saw Tooth handle model is engineered to dissipate the impact energy more efficiently. Each type has the option of round or hex shaped bushing shanks. Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty Chipping Hammers a staple on any construction site

JCT-3620, 3" Stroke, Round Shank, 4-Bolt Chipping Hammer

Features & Benefits

  • Comes with standard type retainer
  • Easy serviceability with the 4-bolt backhead
  • Ergonomic "D" style forged handle with outside trigger
  • Heat treated cylinder and piston for added durability
  • Heavy-Duty, industry proven valve design
SAP EAN Number Code (UPC)731325506426
Model NumberJCT-3620
SAP Base Unit of MeasureEA
SAP Commodity Code8467.11.5090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length16.9
SAP Unit of DimensionIN
SAP Height3.5
SAP Unit of DimensionIN
SAP Width8.7
SAP Unit of DimensionIN
SAP Gross Weight21
SAP Weight UnitLBS
SAP Net weight19
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories ProductsJAF-12,JAR-12,JAS-12,JFR-12,JFRL-12,JSG-1063
Air Consumption (CFM)27.6000
Air Inlet (NPT)3/8
Blows Per Minute2,300
Bore Size (In.)1-1/8
End User SellableYes
Item Display Order1.0000
Min. Air Hose (ID)1/2
Noise Level (dBA)96
Overall Length (In.)14.5
Piston Stroke (In.)3
Prop 65None
Shank Bushing Size (In.)0.680
Vibration Value (m/s²)14.5000
Weight (Lbs.)17.0000
Weight (Lbs.) (Unit)Pound
Shank Bushing StyleRound

Part #: 550620

Price: $597.99
Quantity:
