JCT-3623A, 4" 4-BOLT CHIPPING HAMMER H

4-Bolt Chipping Hammers

<< Back

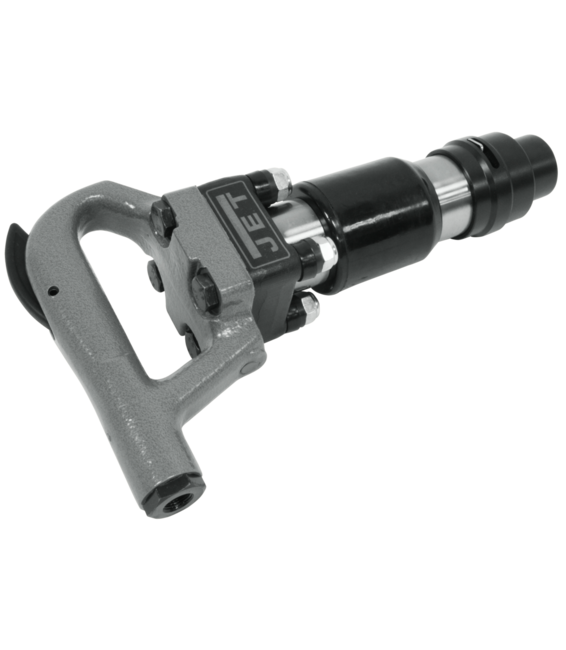

JCT-3623A, 4" 4-BOLT CHIPPING HAMMER H

JET Chipping hammers are available in two heavy-duty designs with multiple capabilities. The Four Bolt D handle model is designed for extra strength and provides better grip. The Saw Tooth handle model is engineered to dissipate the impact energy more efficiently. Each type has the option of round or hex shaped bushing shanks. Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty Chipping Hammers a staple on any construction site

JCT-3623, 4" Stroke, Hex Shank, 4-Bolt Chipping Hammer

Features & Benefits

  • Comes with standard type retainer
  • Easy serviceability with the 4-bolt backhead
  • Ergonomic "D" style forged handle with outside trigger
  • Heat treated cylinder and piston for added durability
  • Heavy-Duty, industry proven valve design
SAP EAN Number Code (UPC)731325506457
Model NumberJCT-3623
SAP Base Unit of MeasureEA
SAP Commodity Code8467.11.5090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length19.7
SAP Unit of DimensionIN
SAP Height3.5
SAP Unit of DimensionIN
SAP Width9.1
SAP Unit of DimensionIN
SAP Gross Weight23
SAP Weight UnitLBS
SAP Net weight21
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories ProductsJAF-12,JAR-12,JAS-12,JFR-12,JFRL-12,JSG-1063
Air Consumption (CFM)30.0000
Air Inlet (NPT)3/8
Blows Per Minute1700
Bore Size (In.)1-1/8
End User SellableYes
Item Display Order4.0000
Min. Air Hose (ID)1/2
Noise Level (dBA)96
Overall Length (In.)16.08
Piston Stroke (In.)4-1/4
Prop 65Cancer and Reproductive Harm
Shank Bushing Size (In.)0.580
Vibration Value (m/s²)16.0800
Weight (Lbs.)19.0000
Weight (Lbs.) (Unit)Pound
Shank Bushing StyleHex

Part #: 550623

Price: $625.99
Quantity:
