JAT-483 1HP 4" EXTENDED CUT-OFF TOOl

Cutting Tools

<< Back

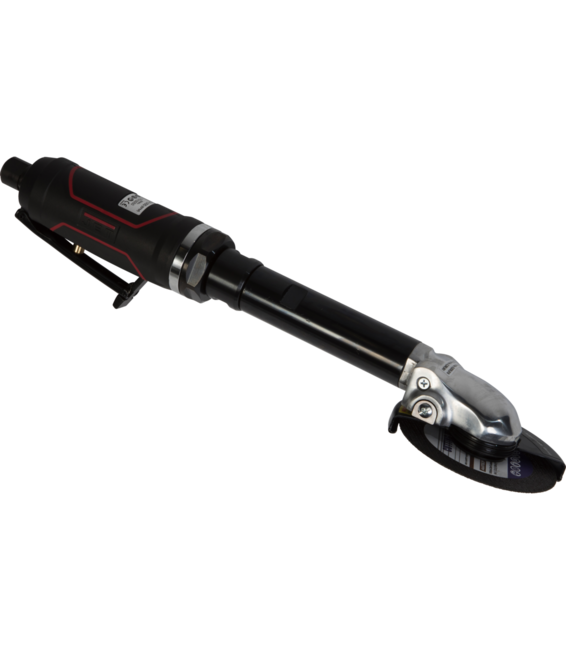

JAT-483 1HP  4" EXTENDED CUT-OFF TOOl
JAT-483 1HP  4" EXTENDED CUT-OFF TOOlJAT-483 1HP  4" EXTENDED CUT-OFF TOOlJAT-483 1HP  4" EXTENDED CUT-OFF TOOl
JAT-483 1HP  4" EXTENDED CUT-OFF TOOlJAT-483 1HP  4" EXTENDED CUT-OFF TOOl

The JAT-483 will exceed your expectations for power, comfort, reach, and durability. With its 1hp motor driving this tool and its extended shaft you won't have to worry about reaching the work or stalling when you get there.

JAT-483, 4", 1 HP Extended Cut-Off Tool

Features & Benefits

  • 360 Rotating air inlet keeps the air hose tangle free for added safety
  • Easy-to-use spindle lock system holds the cutting wheel when choosing one of 11 adjustable positions of the swivel guard
  • Impact resistant composite housings reduce tool weight and user fatigue.
  • Precision spiral bevel gears transfer torque and speed to spindle for added durability
  • Right-angle head design for reaching tight or angled grinding jobs
  • Tapered angle gear housing allows greater visibility of targeted work area
  • Upgraded Full, 1 HP motors provide the heavy-duty power needed for harsh industrial environments
  • Variable-speed throttle ramps up to maximum RPM
  • Variable-speed throttle ramps up to maximum RPM, while the safety lock prevents accidental engagement
SAP EAN Number Code (UPC)731325525823
Model NumberJAT-483
SAP Base Unit of MeasureEA
SAP Commodity Code8467.11.1040
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length14.6
SAP Unit of DimensionIN
SAP Height2.1
SAP Unit of DimensionIN
SAP Width4
SAP Unit of DimensionIN
SAP Gross Weight4.2
SAP Weight UnitLBS
SAP Net weight3.7
SAP Weight UnitLBS
SAP Transportation GroupParcel
Air Consumption (CFM)5.3000
Air Hose (ID/In.)3/8
Air Inlet (NPT)1/4
Air Pressure (PSI)90
Body TypeFull, Extended
End User SellableYes
Free Speed (RPM)14000.0000
Horse Power (HP)1.0000
Item Display Order51.0000
Min. Air Hose (ID)3/8
Overall Length (In.)14.6
Prop 65Cancer and Reproductive Harm
Sound Power (db) (A)96.5000
Sound Pressure (db) (A)85.5000
Spindle Thread (In./TPI)3/8"-24 UNF
Vibration Value (m/s²)3.8000
Weight (Lbs.)4.1000
Weight (Lbs.) (Unit)Pound
Wheel Size (In.)4

Part #: 505483

Price: $367.99
Quantity:
