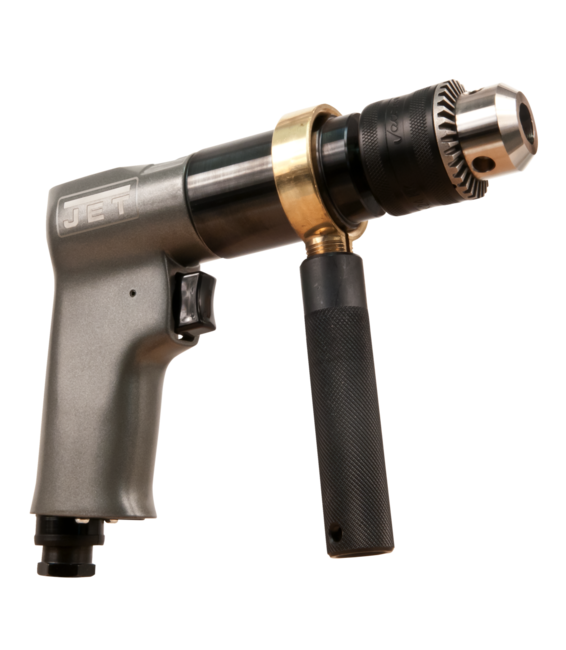

JAT-601 1/2" REV DRILL
JAT-601 1/2" REV DRILLJAT-601 1/2" REV DRILLJAT-601 1/2" REV DRILL
JAT-601 1/2" REV DRILL

The JAT-600 is 3/8" aluminum drill build with 800 rpm of speed for the Transportation and MRO markets with reversible design and keyed chuck.

JAT-601, 1/2" Reversible Air Drill

Features & Benefits

  • Lightweight aluminum construction
  • Sealed ball bearing design keeps out contaminants promoting smooth operation
  • Side-mounted, forward/reverse switch for quick and easy direction changes
  • Variable-speed throttle ramps up to maximum RPM for precise speed control
  • Backed by the industry leading 2-Year Warranty
SAP EAN Number Code (UPC)731325354232
Model NumberJAT-601
SAP Base Unit of MeasureEA
SAP Commodity Code8467.11.1080
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length9.55
SAP Unit of DimensionIN
SAP Height1.79
SAP Unit of DimensionIN
SAP Width6.77
SAP Unit of DimensionIN
SAP Gross Weight4.09
SAP Weight UnitLBS
SAP Net weight3.74
SAP Weight UnitLBS
SAP Transportation GroupParcel
Air Consumption (CFM)4.0000
Air Hose (ID/In.)3/8
Air Inlet (NPT)1/4
Air Pressure (PSI)90
Chuck Size (In.)1/2
End User SellableYes
Free Speed (RPM)800.0000
Horse Power (HP)0.5000
Item Display Order10.0000
Min. Air Hose (ID)3/8
Overall Length (In.)8-1/4
Prop 65Cancer and Reproductive Harm
Sound Power (db) (A)101.0000
Sound Pressure (db) (A)83.0000
Spindle Thread (In./TPI)3/8"-24 UNF
Vibration Value (m/s²)0.4000
Weight (Lbs.)3.7500
Weight (Lbs.) (Unit)Pound

Part #: 505601

Price: $155.99
Quantity:
