JAT-630 3/8" REV ANGLE DRILL

Drills

The JAT-620 is 1/2" composite housing angled drill build with 1,200 rpm of speed for the Transportation and MRO markets with reversible design and industrial keyed chuck

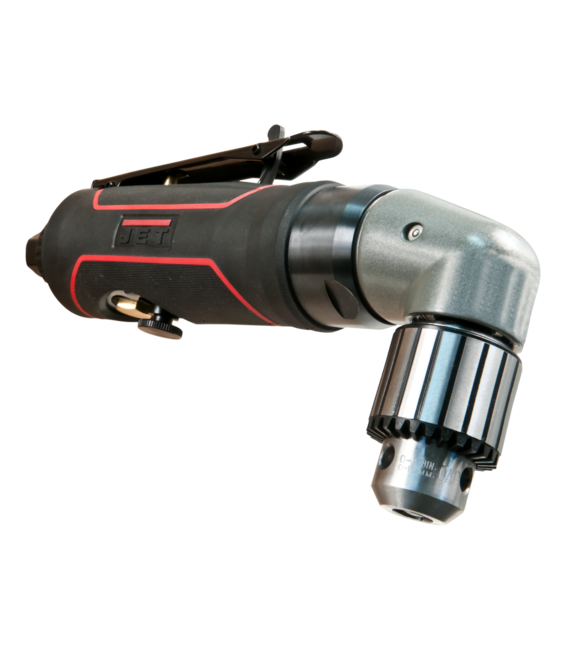

JAT-630, 3/8" Reversible Angle Drill

Features & Benefits

Bottom-mounted, forward/reverse switch locks in place
Ergonomically Designed Grip
Head rotates 360 for increased versatility
Industrial Jacobss keyed chuck efficiently transfers torque when needed
Low profile angled head for work in tight spots
Rugged, ball-bearing design for durability
Variable-speed trigger for precise speed control

SAP EAN Number Code (UPC)	731325354287
Model Number	JAT-630
SAP Base Unit of Measure	EA
SAP Commodity Code	8467.11.1080
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	9.55
SAP Unit of Dimension	IN
SAP Height	1.79
SAP Unit of Dimension	IN
SAP Width	6.77
SAP Unit of Dimension	IN
SAP Gross Weight	2.8
SAP Weight Unit	LBS
SAP Net weight	2.5
SAP Weight Unit	LBS
SAP Transportation Group	Parcel
Air Consumption (CFM)	4.0000
Air Hose (ID/In.)	3/8
Air Inlet (NPT)	1/4
Air Pressure (PSI)	90
Chuck Size (In.)	3/8
End User Sellable	Yes
Free Speed (RPM)	1200.0000
Horse Power (HP)	0.5000
Item Display Order	3.0000
Min. Air Hose (ID)	3/8
Overall Length (In.)	8
Prop 65	Cancer and Reproductive Harm
Sound Power (db) (A)	97.0000
Sound Pressure (db) (A)	90.0000
Spindle Thread (In./TPI)	3/8"-24 UNF
Vibration Value (m/s²)	0.5000
Weight (Lbs.)	2.7800
Weight (Lbs.) (Unit)	Pound

Part #: 505630

Price: $223.99
