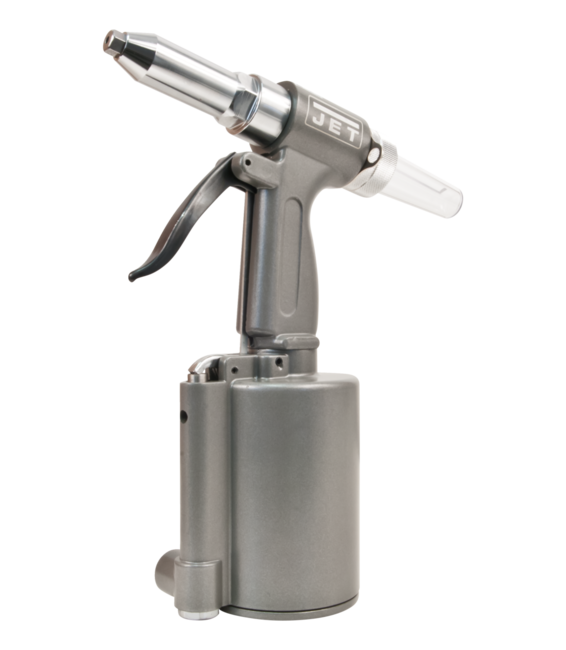

JAT-920 RIVETER

Specialty Tools

The JAT-921 is a very versatile Riveter that is excellent for mild steel up to 3/16" in depth. Built with industrial usage in mind this tool will hand requirements of high production shops.

JAT-920 Riveter

Features & Benefits

3/16" mild steel capacity
Heavy-duty construction for continuous production
Includes 3/16", 5/32", 1/8" and 3/32" nose pieces
Maximum pulling load of 1,940 pounds for increased versatility
Quick-release air valve increases safety

SAP EAN Number Code (UPC)	731325774214
Model Number	JAT-920
SAP Base Unit of Measure	EA
SAP Commodity Code	8467.11.5090
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	11.81
SAP Unit of Dimension	IN
SAP Height	3.15
SAP Unit of Dimension	IN
SAP Width	6.89
SAP Unit of Dimension	IN
SAP Gross Weight	3.82
SAP Weight Unit	LBS
SAP Net weight	3.47
SAP Weight Unit	LBS
SAP Transportation Group	Parcel
Air Consumption (CFM)	4.0000
Air Inlet (NPT)	1/4
Air Pressure (PSI)	78-85
End User Sellable	Yes
Item Display Order	1.0000
Metal Capacity (Gauge)	18.0000
Min. Air Hose (ID)	3/8
Overall Length (In.)	11-1/2
Prop 65	Cancer and Reproductive Harm
Rivet Capacity (In.)	3/16
Sound Power (db) (A)	88.0000
Sound Pressure (db) (A)	77.0000
Stroke Length (In.)	9/16
Traction Power (Lbs.)	1940
Vibration Value (m/s²)	1.0100
Weight (Lbs.)	3.4800
Weight (Lbs.) (Unit)	Pound

Part #: 505921

Price: $202.99
