1745 WILTON TRADEMAN VISE 4-1/2IN

Bullet

<< Back

1745 WILTON TRADEMAN VISE 4-1/2IN
1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN
1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN
1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN
1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN
1745 WILTON TRADEMAN VISE 4-1/2IN1745 WILTON TRADEMAN VISE 4-1/2IN

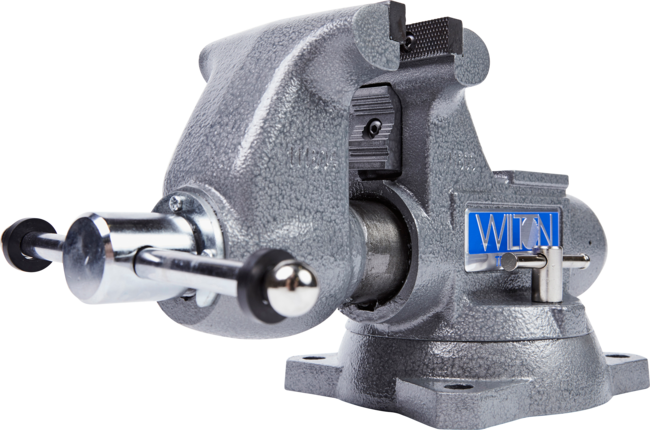

The Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Tradesman 1745 Vise, 4-1/2" Jaw Width, 3-1/2" Jaw Opening, 3-1/4" Throat Depth

Features & Benefits

  • 60,000 PSI ductile iron body, jaw, and base is virtually indestructible with 2X the strength of gray cast iron
  • Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Large anvil designed to take a beating while forming and shaping materials
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Redesigned spindle assembly improves overall product life and durability
  • Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
SAP EAN Number Code (UPC) 731325753950
Model Number 1745
SAP Base Unit of Measure EA
SAP Commodity Code 8205.70.0060
SAP Country of Origin Taiwan
Warranty Lifetime
SAP Delivery Plant JNA
SAP Length 14.5
SAP Unit of Dimension IN
SAP Height 8
SAP Unit of Dimension IN
SAP Width 6.6
SAP Unit of Dimension IN
SAP Gross Weight 42
SAP Weight Unit LBS
SAP Net weight 38.3
SAP Weight Unit LBS
SAP Transportation Group Parcel
Accessories Products 14829,14835,14841,14847,21111,24406
End User Sellable No
Item Display Order 10.0000
Jaw Depth (In.) 1/2
Jaw Height (In.) 3/4
Jaw Width (In.) 4-1/2
Number of Mounting Points 4
Opening Capacity Max (In.) 3-1/2
Prop 65 Cancer
Throat Depth (In.) 3-1/4
Type of Base 360 Degree Swivel

Part #: 28805

Price: $629.99
