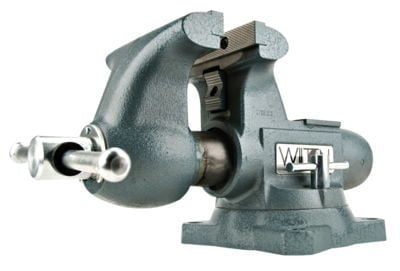

1780A, Tradesman 8

Proudly made in the USA, the Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Features & Benefits

  • Wider jaws provide greater clamping surface
  • Enclosed design keeps lubrication in and contaminants out for smooth operation
  • Large anvil work surface
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • 60,000 PSI ductile iron body is virtually indestructible with 2X the strength of grey casted vises
  • Longer spindle nut ensures a lifetime of smooth movement and straight-line pull
UPC 019907632023
SAP Material Group 110O
SAP Material Type ZFIN
SAP Warranty Lifetime
Model Number 1780A
SAP Owner WWH
SAP Country of Origin US
SAP Product Category WH
SAP Rounding Profile NA
SAP Height 13.300
SAP Length 20.400
SAP Volume 1.696
SAP Width 10.800
Jaw Depth (In.) 5/8
Throat Depth (In.) 4-3/4
Jaw Height (In.) 1
Type of Base 360 Degree Swivel
Jaw Width (In.) 8
Serrated Jaw Inserts # 2908100
Opening Capacity Max (In.) 7
Pipe Jaw Capacity (In.) 1/8 - 3-1/2
Pipe Jaw # 2908050

Part #: 63202

Price: $1,229.99
