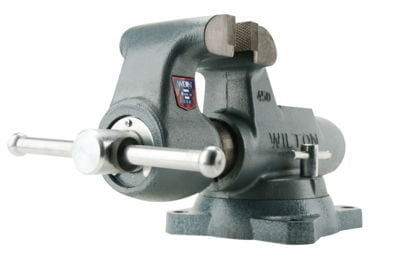

300S Machinist 3

Proudly made in the USA, the Machinist vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Machinist round channel vise nut is anchored at the rear to provide straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly which keeps debris out and lubrication in for a lifetime of smooth operation. The Machinist vise is equipped with main jaws and a machined anvil work surface.

Features & Benefits

  • Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque
  • Extra deep throat - this design gives you more working room where it counts
  • Enclosed design keeps lubrication in and contaminants out for smooth operation
  • Large anvil work surface
  • 60,000 PSI ductile iron body is virtually indestructible with 2X the strength of grey casted vises
  • Precicision slide bar eliminates movement in the front jaw regardless of opened distance
  • Longer spindle nut ensures a lifetime of smooth movement and straight-line pull
UPC 019907100065
SAP Material Group 110O
SAP Material Type ZFIN
SAP Warranty Lifetime
Model Number 300S
SAP Owner WWH
SAP Country of Origin US
SAP Product Category WH
SAP Rounding Profile NA
SAP Height 6.700
SAP Length 15.200
SAP Volume 0.401
SAP Width 6.800
Center Distance (In.) 2
Jaw Depth (In.) 1/2
Throat Depth (In.) 2-5/8
Jaw Height (In.) 3/4
Smooth Jaw Inserts # 2903090
Type of Base 360 Degree Swivel
Jaw Width (In.) 3
Serrated Jaw Inserts # 2903080
Opening Capacity Max (In.) 4-3/4
Type Swivel

Part #: 10006

Price: $685.99
