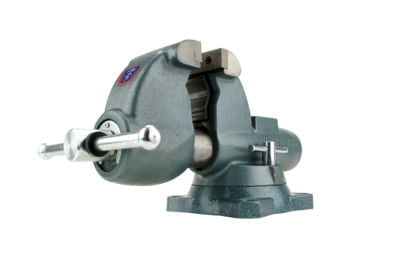

C1, Combination Pipe and Bench 4-1/2

Proudly made in the USA, the Combination Pipe and Bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Features & Benefits

  • Self-centering pipe jaws hold up to 3.5" pipe safely and securely
  • Enclosed construction keeps lubrication in and contaminants out
  • Locking swivel base with double lockdowns for non-slip hold in any position
  • Precicision slide bar eliminates movement in the front jaw regardless of opened distance
  • Large anvil work surface
  • Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque
  • 60,000 PSI ductile iron body is virtually indestructible with 2X the strength of grey casted vises
  • Longer spindle nut ensures a lifetime of smooth movement and straight-line pull
UPC 019907102250
SAP Material Group 110O
SAP Material Type ZFIN
SAP Warranty Lifetime
Model Number C-1
SAP Owner WWH
SAP Country of Origin US
SAP Product Category WH
SAP Rounding Profile NA
SAP Height 11.100
SAP Length 20.400
SAP Volume 1.140
SAP Width 8.700
Center Distance (In.) 2-3/8
Jaw Depth (In.) 5/8
Throat Depth (In.) 4-3/4
Jaw Height (In.) 1-1/4
Type of Base 360 Degree Swivel
Jaw Width (In.) 4-1/2
Serrated Jaw Inserts # 2905000
Opening Capacity Max (In.) 6
Pipe Jaw Capacity (In.) 1/8 - 3-1/2
Pipe Jaw # 2900770

Part #: 10225

Price: $1,257.99
