C1 WILTON COMBO PIPE & BENCH VISE 4-1/2

Bullet

<< Back

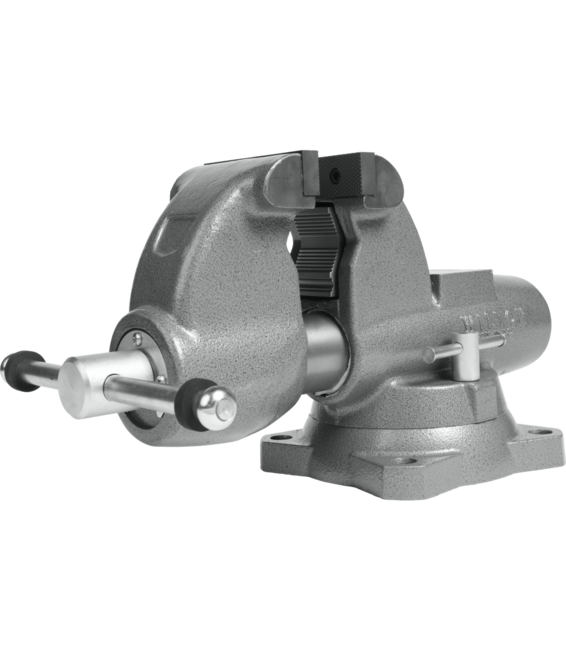

C1 WILTON COMBO PIPE & BENCH VISE 4-1/2
C1 WILTON COMBO PIPE & BENCH VISE 4-1/2C1 WILTON COMBO PIPE & BENCH VISE 4-1/2C1 WILTON COMBO PIPE & BENCH VISE 4-1/2
C1 WILTON COMBO PIPE & BENCH VISE 4-1/2C1 WILTON COMBO PIPE & BENCH VISE 4-1/2C1 WILTON COMBO PIPE & BENCH VISE 4-1/2
C1 WILTON COMBO PIPE & BENCH VISE 4-1/2C1 WILTON COMBO PIPE & BENCH VISE 4-1/2

Proudly made in the USA, the Combination Pipe and Bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Combination Pipe And Bench 4-1/2 Jaw Round Channel Vise with Swivel Base

Features & Benefits

  • Hardened steel replaceable jaw inserts are machine serrated for a safe and secure grip under maximum torque
  • Large anvil designed to take a beating while forming and shaping materials
  • Locking swivel base with double lockdowns for non-slip hold in any position
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Massive cast iron vise body is virtually indestructible, weighing up to 30% more than competing models
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Replaceable steel pipe jaws hold up to 6" pipe safely and securely
  • Sealed construction keeps lubrication in and contaminants out for a lifetime of smooth operation
SAP EAN Number Code (UPC)731325760422
Model NumberC-1
SAP Base Unit of MeasureEA
SAP Commodity Code8205.70.0060
SAP Country of OriginUSA
WarrantyLifetime
SAP Delivery PlantJNA
SAP Length20.4
SAP Unit of DimensionIN
SAP Height11.1
SAP Unit of DimensionIN
SAP Width8.7
SAP Unit of DimensionIN
SAP Gross Weight78.375
SAP Weight UnitLBS
SAP Net weight76.9
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products14829,14834,14840,14846,21111,24406
End User SellableNo
Item Display Order60.0000
Jaw Depth (In.)5/8
Jaw Height (In.)1-1/4
Jaw Width (In.)4-1/2
Opening Capacity Max (In.)7
Pipe Jaw # (English United States, Ecommerce)2900770
Prop 65Cancer
Serrated Jaw Inserts #2905000
Throat Depth (In.)4-3/4
Type of Base360 Degree Swivel

Part #: 28826

Price: $1,398.99
Quantity:
