JUNIOR 343 POW-R-ARM 2000400

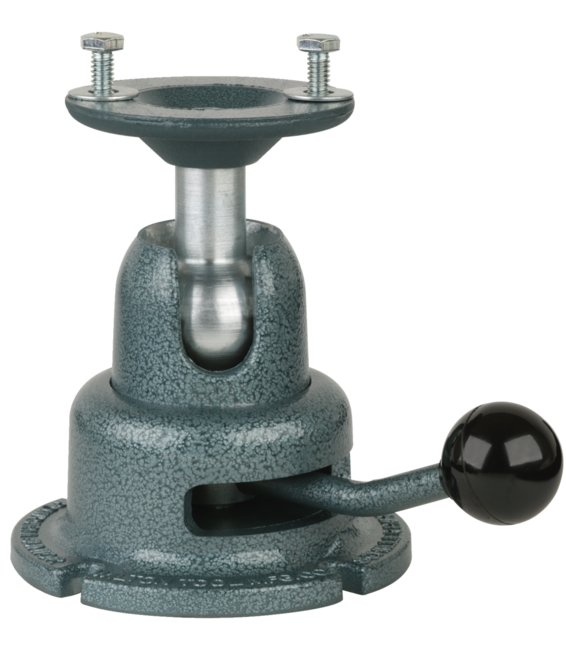

The 343 Pow-R-Arm Junior provides fast on-off action with horizontal moving lock handle.

343, Junior No. 343 Pow-R-Arm

Features & Benefits

  • 3" diameter mounting pad with two 1/4 - 20 holes 180apart. Four slotted equally spaced 9/32" diameter mounting holes
  • Available in a wide range of models for every job size, Pow-R-Arms are perfect for any application-at a permanent workstation, assembly line or workbench
  • Body is cast aluminum with steel parts
  • Fast on-off action with horizontal-moving lock handle
  • Pow-R-Arms increase productivity by bringing the work to the worker-which helps reduce fatigue, back injury and other health problems
  • Reposition the work piece quickly and accurately with the flexibility of Pow-R-Arms wrist action, eliminating time-consuming clamping and unclamping
  • Wilton Pow-R-Arms: The full swiveling, 360 dead-lock work positioners put the workpiece where you want it and holds it tight for hands-free production
SAP EAN Number Code (UPC) 19907161806
Model Number 343
SAP Base Unit of Measure EA
SAP Commodity Code 8205.70.0060
SAP Country of Origin USA
Warranty Lifetime
SAP Delivery Plant JNA
SAP Length 6.6
SAP Unit of Dimension IN
SAP Height 4.9
SAP Unit of Dimension IN
SAP Width 4.8
SAP Unit of Dimension IN
SAP Gross Weight 4.4
SAP Weight Unit LBS
SAP Net weight 4.4
SAP Weight Unit LBS
SAP Transportation Group Parcel
Base Diameter (In.) 4-1/4
Diameter Bolt Circle (In.) 2.2500
Diameter Bolt Circle (In.) (Unit) Inch
End User Sellable No
Extended Height (In.) 5
Item Display Order 30.0000
Prop 65 Cancer
Workholding Capacity 30.0000
Workholding Capacity (Unit) Pound

Part #: 16180

Price: $272.99
