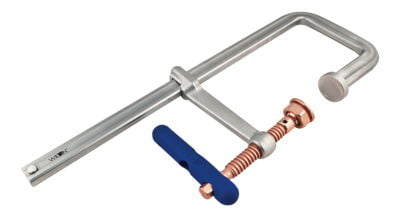

1200J-10C, 10" J SERIES F-CLAMP COPPER

Spark Duty

Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
J-Shaped Rail steps over i-beams and irregular shapes.
Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
Drop forged arm provides minimal flex under heavy work loads.

UPC	731325228540
SAP Material Group	140P
SAP Material Type	ZFIN
SAP Warranty	Lifetime
Model Number	1200J-10C
SAP Owner	WWH
SAP Division	96
SAP Country of Origin	TW
SAP Product Category	WH
SAP Rounding Profile	NA
SAP Height	1.500
SAP Length	17.000
SAP Volume	0.118
SAP Width	8.000
Prop 65	Cancer and Reproductive Harm
Quick-Twist V-Groove Pad Stock Number	2909300
Quick-Twist Plain Pad Stook Number	2909100
Quick-Twist Serrated Pad Stock Number	2909200
Nut Stock Number	1701700
Spindle and T-Handle with Spring Pin Stock Number	1701600
Joint with Spring Pin Stock Number	1701500
Spindle Diameter	5/8
Clamping Capacity (in)	10
Nominal Rail Size (in)	7/8 x 3/8
Clamping Force (lbs)	1210
Quick-Twist Pads	Yes
Throat Depth (in)	4-3/4

Part #: 86900

Price: $105.99

Quantity:
