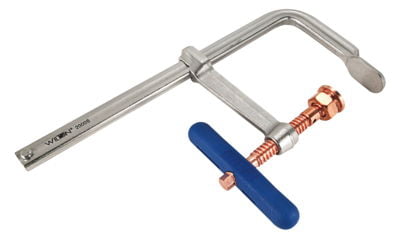

2000S-24C, 24" LIGHT DUTY F-CLAMP COPPER

Spark Duty

Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
Drop forged arm provides minimal flex under heavy work loads.

UPC	731325228304
SAP Material Group	140P
SAP Material Type	ZFIN
SAP Warranty	Lifetime
Model Number	2000S-24C
SAP Owner	WWH
SAP Division	96
SAP Country of Origin	TW
SAP Product Category	WH
SAP Rounding Profile	NA
SAP Height	2.000
SAP Length	29.000
SAP Volume	2.517
SAP Width	7.500
Prop 65	Cancer and Reproductive Harm
Quick-Twist V-Groove Pad Stock Number	2909301
Quick-Twist Plain Pad Stook Number	2909101
Quick-Twist Serrated Pad Stock Number	2909201
Nut Stock Number	1701701
Spindle and T-Handle with Spring Pin Stock Number	1701601
Joint with Spring Pin Stock Number	1701501
Spindle Diameter	3/4
Clamping Capacity (in)	24
Nominal Rail Size (in)	1-1/16 x 1/2
Clamping Force (lbs)	2000
Quick-Twist Pads	Yes
Throat Depth (in)	4-3/4

Part #: 86330

Price: $115.99

Quantity:
