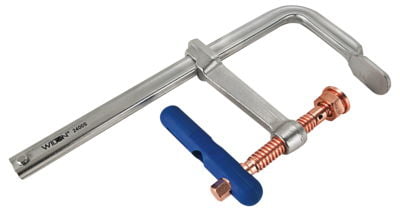

2400S-60C, 60" REGULAR DUTY F-CLAMP COPP

Spark Duty

2400S-60C, 60" REGULAR DUTY F-CLAMP COPPER

Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
Drop forged arm provides minimal flex under heavy work loads.

UPC	731325228380
SAP Material Group	140P
SAP Material Type	ZFIN
SAP Warranty	Lifetime
Model Number	2400S-60C
SAP Owner	WWH
SAP Division	96
SAP Country of Origin	TW
SAP Product Category	WH
SAP Rounding Profile	NA
SAP Height	2.000
SAP Length	66.000
SAP Volume	0.611
SAP Width	8.000
Prop 65	Cancer and Reproductive Harm
Quick-Twist V-Groove Pad Stock Number	2909302
Quick-Twist Plain Pad Stook Number	2909102
Quick-Twist Serrated Pad Stock Number	2909202
Nut Stock Number	1701702
Spindle and T-Handle with Spring Pin Stock Number	1701602
Joint with Spring Pin Stock Number	1701502
Spindle Diameter	3/4
Clamping Capacity (in)	60
Nominal Rail Size (in)	1-3/16 x 19/32
Clamping Force (lbs)	2660
Quick-Twist Pads	Yes
Throat Depth (in)	5-1/2

Part #: 86470

Price: $269.99

Quantity:
