10T BENDER- 3PH/230V PORTABLE POWER UNIT

10 Ton Bender

<< Back

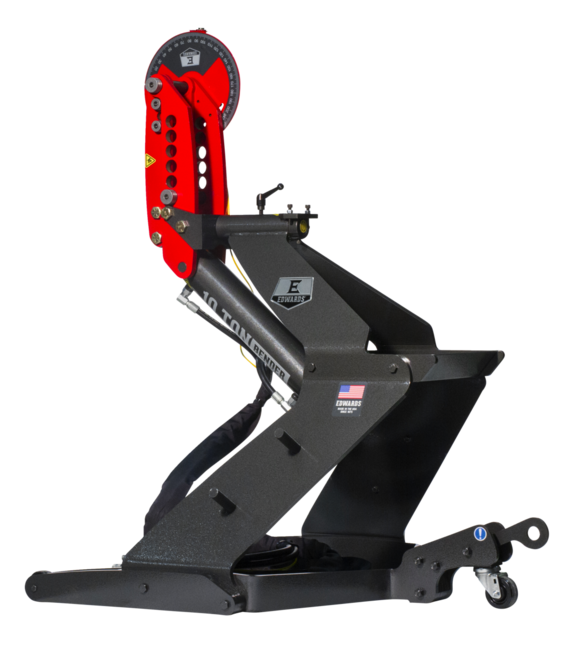

10T BENDER- 3PH/230V PORTABLE POWER UNIT
10T BENDER- 3PH/230V PORTABLE POWER UNIT10T BENDER- 3PH/230V PORTABLE POWER UNIT10T BENDER- 3PH/230V PORTABLE POWER UNIT
10T BENDER- 3PH/230V PORTABLE POWER UNIT10T BENDER- 3PH/230V PORTABLE POWER UNIT

The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. This Bender package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

10 Ton Bender and Porta Power 230V, 3Ph

Features & Benefits

  • 20' quick-connect hoses for simple "plug & play" operation
  • Bend a wide variety of round or square tube and pipe up to 180s
  • Built-in storage on the frame keeps your Bender Dies conveniently close
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Heavy-duty rolling stand allows you to move the Radius Roller around as needed
  • Horizontal or Vertical operation provides the user flexibility
  • Integrated proximity sensor and degree wheel ensure you make the right bend every time
  • Over 300 standard dies available to handle your bending needs
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
SAP EAN Number Code (UPC)731325581218
Model NumberHAT1020
SAP Country of OriginUSA
Warranty1 Year
SAP Length66
SAP Height100
SAP Width93
SAP Gross Weight1000
SAP Net weight980
Bend Capacity180.0000
Cylinder (In)1-3/4" Ram
End User SellableNo
Gross Weight (Lbs)1000.0000
Gross Weight (Lbs) (Unit)Pound
Hydraulics (GPM)3-1/2
Item Display Order3.0000
Max. Bend (Deg.)180
Net Weight (Lbs.)1000.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)66 x 93 x 100
Pipe Capacity (In.)2 (ID) Sch 40
Product Dimensions (In.)40-1/2 x 36-1/2 x 42
Prop 65Cancer and Reproductive Harm
Rating (Tons)10.0000
Rating (Tons) (Unit)Ton
Round Pipe Sch. 40 Capacity (In.)2
Round Tube Capacity (In.)2-1/2
Square Tube Capacity (In.)2 (OD) .25
Stroke (In.)14
Tube Capacity (In.)2-1/2 (OD) .095
Valve Pressure (PSI)2750.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)1000.0000
Weight (Lbs.) (Unit)Pound

Part #: HAT1020

Price: $8,649.00
Quantity:
