HORIZONTAL PRESS

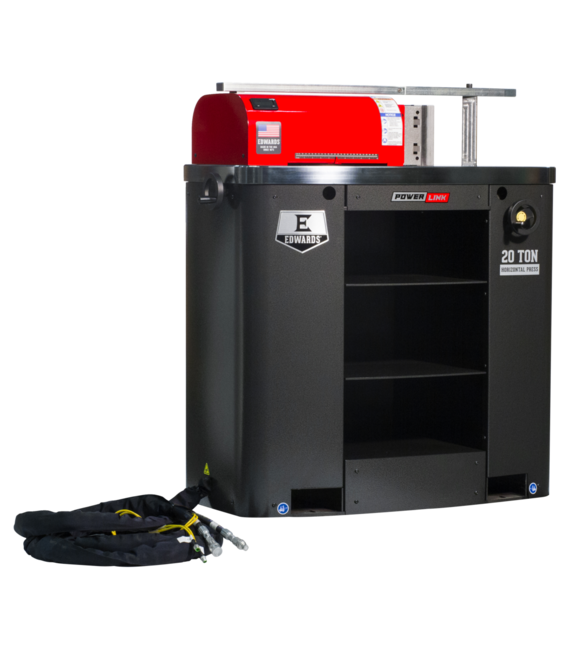

20 Ton Horizontal Press

The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit.

20 Ton Horizontal Press

Features & Benefits

20' quick-connect hoses for simple "plug & play" operation
Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
Digital encoder provides enhanced accuracy for precise repeatability
Easy-to-use hand/jog controls with integrated E-Stop
Robust construction with 2" machine heavy-duty table
Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more
Storage shelves perfect for holding additional tooling

SAP EAN Number Code (UPC)	731325555592
Model Number	HAT6000
SAP Country of Origin	USA
Warranty	1 Year
SAP Length	30
SAP Height	60
SAP Width	48
SAP Gross Weight	1500
SAP Net weight	1500
Accessories Products	HAT001,HAT002,HAT004,HBA100,HBA116,HBA120,HBA121,HBA122,HBA123,HBA124,HBA126,HBA127,HBA128,HBA129,HBA130,HBA200,PR135
Cylinder (In)	2-1/4" Ram
End User Sellable	No
Gross Weight (Lbs)	1500.0000
Gross Weight (Lbs) (Unit)	Pound
Item Display Order	1.0000
Net Weight (Lbs.)	1500.0000
Net Weight (Lbs.) (Unit)	Pound
Overall Dimensions (L x W x H) (In.)	30 x 48 x 60
Product Dimensions (In.)	26 x 43 x 49
Prop 65	Cancer and Reproductive Harm
Rating (Tons)	20.0000
Rating (Tons) (Unit)	Ton
Stroke (In.)	10
Table Dimensions (In.)	24 x 42
Weight (Lbs.)	1500.0000
Weight (Lbs.) (Unit)	Pound
Work Height (In.)	38

Part #: HAT6000

Price: $12,139.00

Quantity:
