100T DELUXE IRONWORKER - 1PH, 230V

100 Ton Deluxe Ironworker without PowerLink System

<< Back

100T DELUXE IRONWORKER - 1PH, 230V

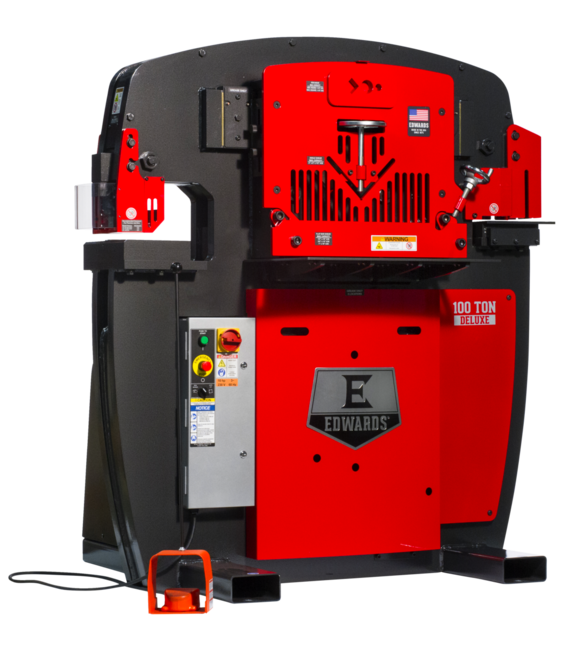

100 Ton Deluxe Ironworker 230V, 1Ph

The 100 Ton Deluxe Ironworker produces greater cycle times and increased operation speed with its 10 HP motor. The 5 Workstations include a 18" wide flat bar shear and integrated rod shear while accepting 10 additional Attachments and 15 Accessories. Extremely powerful and designed for heavy-duty use, this Ironworker can handle anything you throw at it.

Features & Benefits

  • 10 interchangeable Attachments available to tailor the Ironworker to your needs
  • 16 optional Accessories available to increase precision and efficiency
  • Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine.
  • Optimized workstation heights for improved efficiency
  • Electric foot pedal with integrated jog control
  • Adjustable electric stoke control
  • Bright LED lights increase visibility
  • ANSI B11.5-1988(02) Compliant Guarding
  • ETL Certified Controls
UPC731325555820
SAP Material GroupMF02
SAP Material TypeZFIN
SAP Warranty1 Year
Model NumberIW100DX-1P230
SAP OwnerEMF
SAP Country of OriginUS
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height69.000
SAP Length60.000
SAP Volume160.521
SAP Width67.000
Prop 65Cancer and Reproductive Harm
Country of OriginUSA
Punch Rating (tons)100
Punch Max Capacity (In.)1-1/16 diam. In 1 mild steel
Punch Work Height (In.)39-3/8
Punch Throat Depth (In.)11
Punch Stroke (In.)1-15/16
Flat Bar Shear Max Capacity (In.)1/2 x 18, 3/4 x 14, 1 x 10
Flat Bar Shear Work Height (In.)37
Flat Bar Shear Max Round Capacity (In.)1
Flat Bar Shear Max Square Capacity (In.)1
Angle Shear Max Capacity (In.)6 x 6 x 1/2
Angle Shear Work Height (In.)43-15/16
Coper Notcher Max Capacity (In.)3 x 6 x 1/2
Coper Notcher Work Height (In.)42
Rod Shear Max Square (In)1-1/4
Rod Shear Max Round (In)1-1/2
Rod Shear Work Height (In)54-1/2
Motor10 HP 230V 1Ph
Amps40
Hydraulic Reservoir (Gal.)17
Hydraulics (PSI)3800
Hydraulics (GPM)24
Product Dimensions (In.)56 x 45-1/2 x 63-1/8
Shipping Dimensions (In.)60 x 67 x 69
Weight (lbs.)5180
Overall Dimensions (H x W x D) (In.)63-1/8 x 56 x 45-1/2

Part #: IW100DX-1P230

Price: $30,999.00
