40T C IW 115V,1PH, 8IN BRAKE

The 40 Ton C Ironworker is perfect for everything from a home garage or farm to a medium size workshop including an 8" Brake with 4-Way Die allowing 1/16, 1/8, 3/16, and material to be formed to a 90 angle. Running off 115V power, you can plug this Ironworker in almost anywhere and start fabricating. With 4 Workstations which include Punch, Flat Bar Shear, Angle Shear, and a dedicated factory-installed Coper Notcher and the ability to customize with 11 interchangeable Attachments and 16 optional Accessories, this machine can be modified to your specific project.

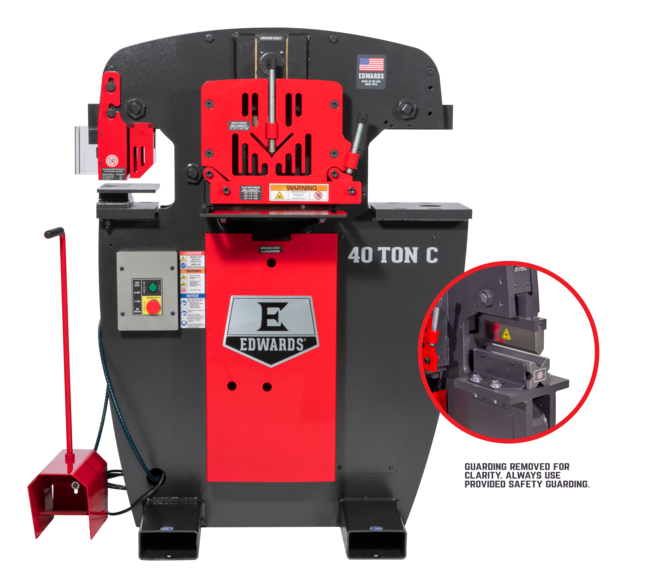

40 Ton C Ironworker, 115V, 1Ph, 8" Brake

Features & Benefits

• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Integrated Lock-out/Tag-out system with E-Stop for added safety
• Operates off 115V power, convenient for all shop locations
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
