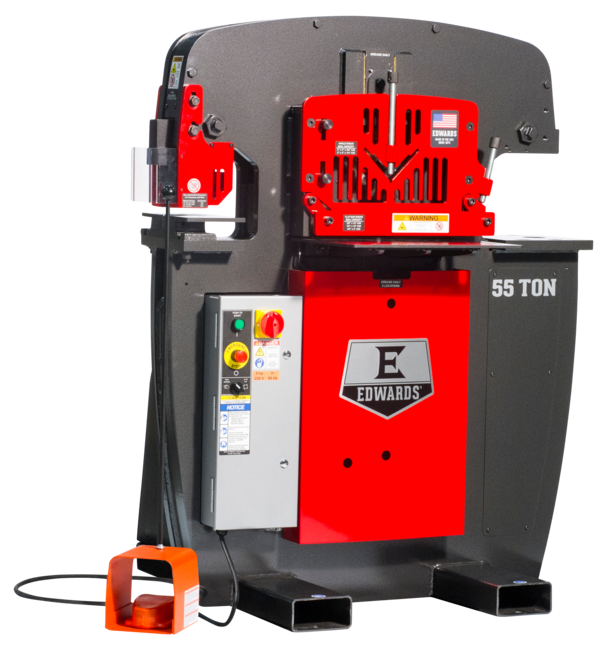

55T IRONWORKER - 3PH, 208V

Name: 55T IRONWORKER - 3PH, 208V
Brand: EDWARDS
SKU: IW55-3P208
Price: 15309.00 USD
Availability: InStock

55 Ton Ironworker without PowerLink System

<< Back

The 55 Ton Ironworker provides more than enough power for larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. ETL/UL Approved Controls.

55 Ton Ironworker 208V, 3Ph

Features & Benefits

Adjustable electric stoke control
ANSI B11.5- 1988(02) Compliant Guarding
Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine
Integrated E-Stop, Lock-out/Tag-out
Optimized workstation heights for improved efficiency
Optional Accessories available to increase precision and efficiency

SAP EAN Number Code (UPC)	731325556322
Model Number	IW55-3P208
SAP Country of Origin	USA
SAP Length	45
SAP Height	62
SAP Width	51
SAP Gross Weight	2480
SAP Net weight	2430
Accessories Products	AC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps	14
Angle Shear Max Capacity 1/4"	4 x 4
Angle Shear Work Height (In.)	39-7/8
End User Sellable	No
Flat Bar Shear Max Capacity 1/2"	12
Flat Bar Shear Max Capacity 3/4"	4
Flat Bar Shear Max Capacity 3/8"	14
Flat Bar Shear Max Round (In)	7/8
Flat Bar Shear Max Square (In)	7/8
Flat Bar Shear Work Height (In.)	34-1/2
Hydraulics (GPM)	3-1/2
Hydraulics (PSI)	2500.0000
Hydraulics (PSI) (Unit)	Pound per square inch
Hydraulic Pump (GPM)	3-1/2
Item Display Order	4.0000
Motor Amps	14
Motor (HP)	5 HP 3 ~ 208V
Motor Speed (RPM)	1725
Open Station Open Height (In)	8-1/8
Open Station Shut Height (In)	6-7/8
Open Station Stroke (In)	1-1/4
Open Station Throat Depth (In)	11-3/16
Open Station Work Height (In)	34-1/2
Open Workstation Throat Depth (In.)	11-3/16
Open Workstation Work Height (In.)	34-1/2
Optional Coper Notcher Work Height (In.)	39-1/2
Package Name	The Edwards 55 Ton Ironworker, JAWS, Universal Open Tooling Station
Product Dimensions (In.)	44-3/8 x 36-1/8 x 55-1/4
Prop 65	Cancer and Reproductive Harm
Punch Open Height (In)	8-1/8
Punch Shut Height (In)	6-7/8
Punch Stroke (In.)	1-1/4
Punch Throat Depth (In.)	7-1/2
Punch Work Height (In.)	36-9/16
Rating (Tons)	55.0000
Rating (Tons) (Unit)	Ton
Configurator Option Type	Base Machine
Reservoir (Gal.)	7
Valve Pressure (PSI)	2750.0000
Valve Pressure (PSI) (Unit)	Pound per square inch
Weight (Lbs.)	2480.0000
Weight (Lbs.) (Unit)	Pound

Part #: IW55-3P208

Price: $15,309.00

Quantity:
