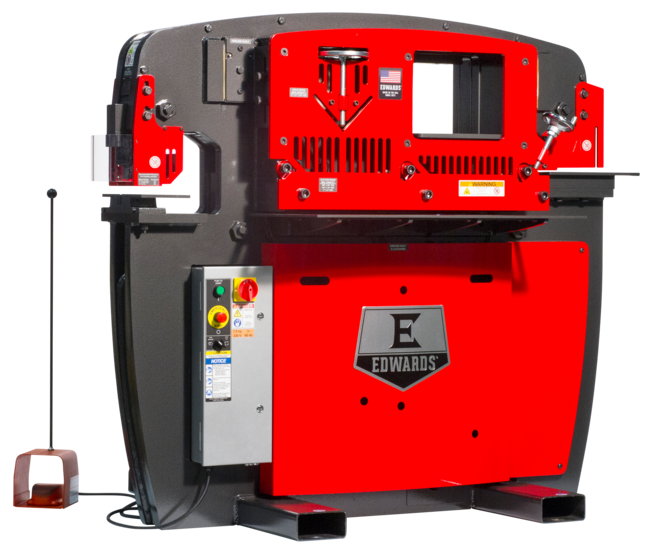

65T IRONWORKER - 3PH, 575V

The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.

65 Ton Ironworker 565V, 3Ph

Features & Benefits

• Adjustable electric stoke control
• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, and Coper Notcher. Open Cavity (1): Customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
