1/2-HDT 1/2T MANUAL TROLLEY

Name: 1/2-HDT 1/2T MANUAL TROLLEY
Brand: Jet
SKU: 262005
Price: 103.02 USD
Availability: InStock

Plain Trolleys

JET HDT Series Manual Trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.

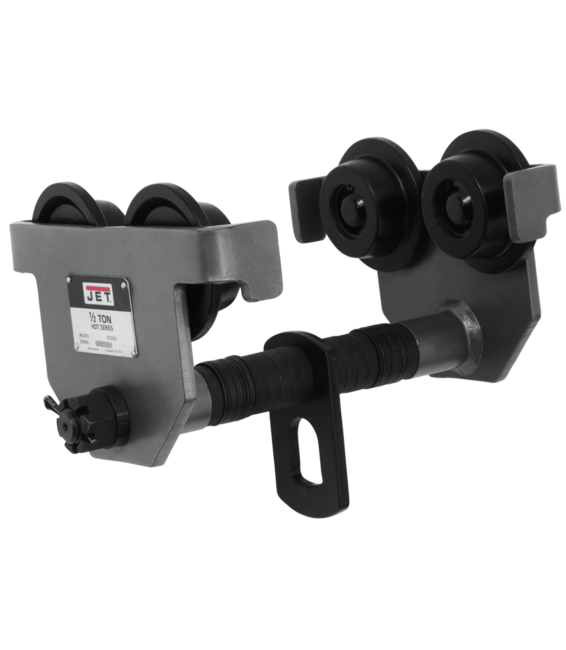

1/2-HDT, 1/2-Ton Manual Trolley

Features & Benefits

Built-in bumper guards on the side plates increase safety and extend trolley life
Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
Welded all-steel frame and powder coat finish provide maximum durability and protection

SAP EAN Number Code (UPC)	662755524639
Model Number	1/2-HDT
SAP Base Unit of Measure	EA
SAP Commodity Code	8479.89.9499
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	12.5
SAP Unit of Dimension	IN
SAP Height	6.5
SAP Unit of Dimension	IN
SAP Width	4
SAP Unit of Dimension	IN
SAP Gross Weight	12
SAP Weight Unit	LBS
SAP Net weight	11
SAP Weight Unit	LBS
SAP Transportation Group	Parcel
Accessories Products	110110,110515,110520,121100,121150,121200,123100,123150,123200
Capacity (Lbs.)	1100.0000
Capacity (Lbs.) (Unit)	Pound
End User Sellable	No
Hook Mount Headroom (In.)	4
Item Display Order	8.0000
Load Capacity (Tons)	1/2
Maximum Beam Flange Width (In.)	8
Minimum Beam Curve Radius (In.)	35
Minimum Beam Flange Width (In.)	2-1/2 - 8
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	11.0000
Weight (Lbs.) (Unit)	Pound
Wheel Diameter (In.)	2-13/16
Max. Hook Size (W/in.)	1-1/4
Overall Dimensions (L x W x H / in.)	7-3/8 x 11-13/16 x 4-5/8
Minimum Beam Height (In.)	3
