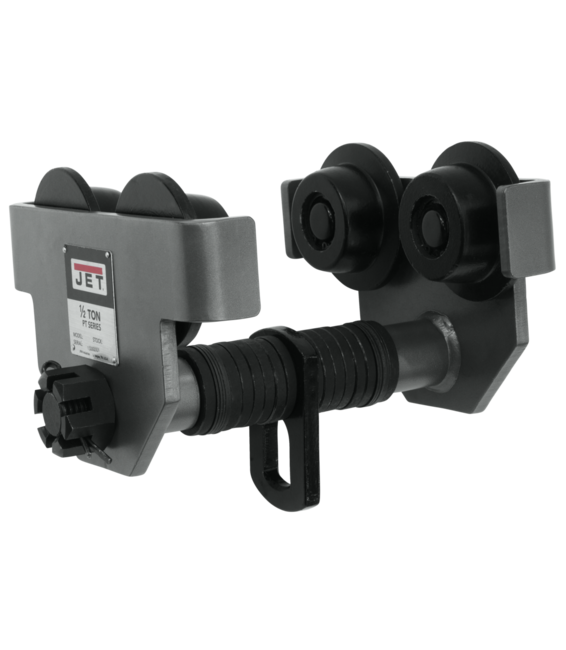

1/2-PT 1/2T HEAVY DUTY MANUAL TROLLEY

JET PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.

1/2-PT, 1/2-Ton Heavy Duty Manual Trolley

Features & Benefits

  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
  • Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
SAP EAN Number Code (UPC)662755223273
Model Number1/2-PT
SAP Base Unit of MeasureEA
SAP Commodity Code8479.89.9499
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length12.7
SAP Unit of DimensionIN
SAP Height5.9
SAP Unit of DimensionIN
SAP Width4.2
SAP Unit of DimensionIN
SAP Gross Weight18.85
SAP Weight UnitLBS
SAP Net weight18.85
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories Products110110,110515,110520,121100,121150,121200,123100,123150,123200
Capacity (Lbs.)1100.0000
Capacity (Lbs.) (Unit)Pound
End User SellableNo
Hook Mount Headroom (In.)4-4/9
Item Display Order1.0000
Load Capacity (Tons)1/2
Maximum Beam Flange Width (In.)8
Minimum Beam Curve Radius (In.)39
Minimum Beam Flange Width (In.)2-1/2
Minimum Beam Height (In.) - jpw_minimum_beam_heighth_in4.0000
Minimum Beam Height (In.) (Unit)Inch
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)19.0000
Weight (Lbs.) (Unit)Pound
Wheel Diameter (In.)2-2/7
Max. Hook Size (W/in.)15/16
Minimum Beam Height (In.) - Min_Beam4
Overall Dimensions (L x W x H / in.)8-1/3 x 12-2/7 x 5-1/8

Part #: 252005

Price: $128.52
