5-HDT 5T MANUAL TROLLEY

Name: 5-HDT 5T MANUAL TROLLEY
Brand: Jet
SKU: 262050
Price: 617.10 USD
Availability: InStock

Plain Trolleys

JET HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards

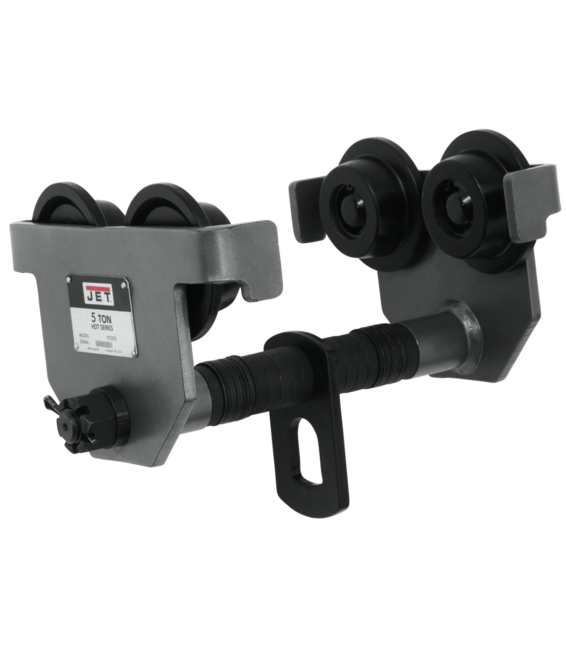

5-HDT, 5-Ton Manual Trolley

Features & Benefits

Built-in bumper guards on the side plates increase safety and extend trolley life
Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
Welded all-steel frame and powder coat finish provide maximum durability and protection

SAP EAN Number Code (UPC)	662755524677
Model Number	5-HDT
SAP Base Unit of Measure	EA
SAP Commodity Code	8479.89.9499
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	16.5
SAP Unit of Dimension	IN
SAP Height	11.5
SAP Unit of Dimension	IN
SAP Width	7.5
SAP Unit of Dimension	IN
SAP Gross Weight	90
SAP Weight Unit	LBS
SAP Net weight	88
SAP Weight Unit	LBS
SAP Transportation Group	Parcel
Accessories Products	101720,101721,101722,101723,103230,105510,105515,105520,105530,511000,511500,512000,530200,531000,531500
Capacity (Lbs.)	11000.0000
Capacity (Lbs.) (Unit)	Pound
End User Sellable	No
Hook Mount Headroom (In.)	7-11/16
Item Display Order	12.0000
Load Capacity (Tons)	5
Maximum Beam Flange Width (In.)	8
Minimum Beam Curve Radius (In.)	55
Minimum Beam Flange Width (In.)	4-5/8 - 8
Prop 65	Cancer and Reproductive Harm
Weight (Lbs.)	87.0000
Weight (Lbs.) (Unit)	Pound
Wheel Diameter (In.)	4-3/4
Max. Hook Size (W/in.)	2-1/8
Overall Dimensions (L x W x H / in.)	14-13/16 x 14-13/16 x 8-9/16
Minimum Beam Height (In.)	10
