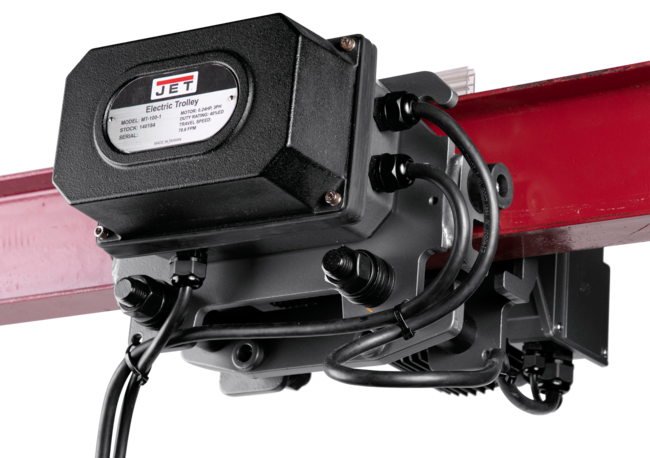

MT050-4 1/2T ELECTRIC TROLLEY  460V
MT050-4 1/2T ELECTRIC TROLLEY  460VMT050-4 1/2T ELECTRIC TROLLEY  460VMT050-4 1/2T ELECTRIC TROLLEY  460V
MT050-4 1/2T ELECTRIC TROLLEY  460VMT050-4 1/2T ELECTRIC TROLLEY  460VMT050-4 1/2T ELECTRIC TROLLEY  460V

JET MT Series Electric Trolley is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. All of this with safe travel speeds up to 79 feet per minute and as low as 20 feet per minute to give you the ability to be more efficient with every load. The MT series is available from 1/2 Ton to 5 Ton capacities. Lets Get to Work.

MT050, 1/2 Ton Two Speed Electric Trolley 3-Phase 460V

Features & Benefits

  • Heavy-Duty motor puts out up to 0.8HP making it the strongest in it's class
  • TAA Approved
  • Two speeds reduces bump firing to while still allowing high speed movement of materials
  • Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
  • Expanded flange capacity kits are available
SAP EAN Number Code (UPC)731325880076
Model NumberMT050-4
SAP Base Unit of MeasureEA
SAP Commodity Code8479.89.9499
SAP Country of OriginTaiwan
Warranty2 Year
SAP Length27.559
SAP Unit of DimensionIN
SAP Height17.717
SAP Unit of DimensionIN
SAP Width19.685
SAP Unit of DimensionIN
SAP Gross Weight143
SAP Weight UnitLBS
SAP Net weight99
SAP Weight UnitLBS
SAP Transportation GroupLTL
Capacity (Lbs.)1100.0000
Capacity (Lbs.) (Unit)Pound
Item Display Order11.0000
Load Capacity (Tons)1/2
Maximum Beam Flange Width (In.)5
Minimum Beam Curve Radius (In.)51.2
Minimum Beam Flange Width (In.)3
Motor (HP)0.04 / 0.16
Motor Phase3
Motor Voltage (V.)460
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)99.0000
Weight (Lbs.) (Unit)Pound
Wheel Diameter (In.)7/8
Travel Speed - Low (FPM)20.0000
Travel Speed - High (FPM)79.0000
Wheel to Hook Mount (in.)3.7000

Part #: 144183

Price: $1,920.00
