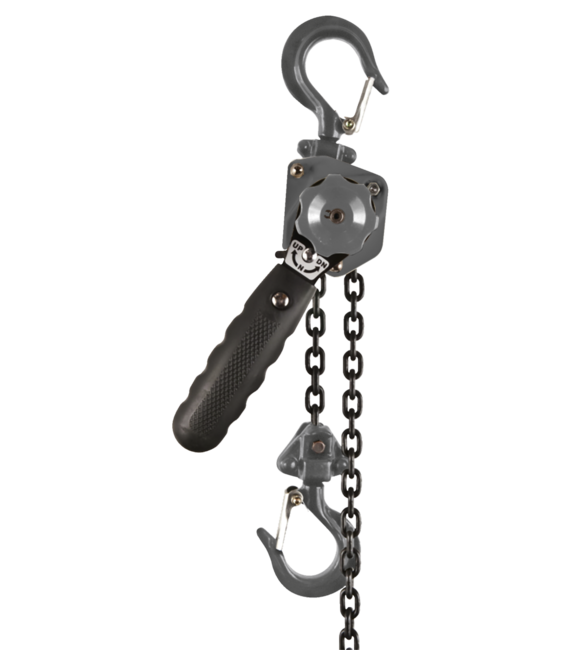

JLP-025A-10 1/4T MINI-PULLER 10' LIFT

JET JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET JLP-A Lever Hoist is available in ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET JLP-A Series is the perfect choice for a contractor grade Lever Hoist.

JLP-025A-10 1/4 Ton Mini-Puller, 10' Lift

Features & Benefits

  • Cast steel safety latches are secured with Allen screws and lock nuts
  • Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
  • Hooks slowly stretch to indicate an overload situation increasing jobsite safety
  • Impact resistant all steel construction for added durability and protection
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
  • Needle bearing design increases efficiency and promotes smooth operation
  • This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection
  • Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
SAP EAN Number Code (UPC)731325473018
Model NumberJLP-025A-10
SAP Base Unit of MeasureEA
SAP Commodity Code8425.19.0000
SAP Country of OriginChina
WarrantyLifetime
SAP Delivery PlantJNA
SAP Length10.05
SAP Unit of DimensionIN
SAP Height2.44
SAP Unit of DimensionIN
SAP Width3.1
SAP Unit of DimensionIN
SAP Gross Weight5.4
SAP Weight UnitLBS
SAP Net weight5.06
SAP Weight UnitLBS
SAP Transportation GroupParcel
Headroom (in.)8-1/4
Capacity (Lbs.)500.0000
Capacity (Lbs.) (Unit)Pound
End User SellableNo
Item Display Order94.0000
Lift (Ft.)10.0000
Lift (Ft.) (Unit)Feet
Load Capacity (Tons)1/4
Load Chain Dimensions dia/mm)4 x 12
Overload ProtectionNo
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)5.3000
Weight (Lbs.) (Unit)Pound
Lever Length (in.)6
Lbs. of Pull to Lift Capacity60.0000
Ship Yard HooksNO

Part #: 287101

Price: $192.78
