GHD-20 GEARED HD DP

Geared Head Drill Presses

<< Back

GHD-20 GEARED HD DP
GHD-20 GEARED HD DPGHD-20 GEARED HD DPGHD-20 GEARED HD DP
GHD-20 GEARED HD DPGHD-20 GEARED HD DPGHD-20 GEARED HD DP
GHD-20 GEARED HD DPGHD-20 GEARED HD DPGHD-20 GEARED HD DP

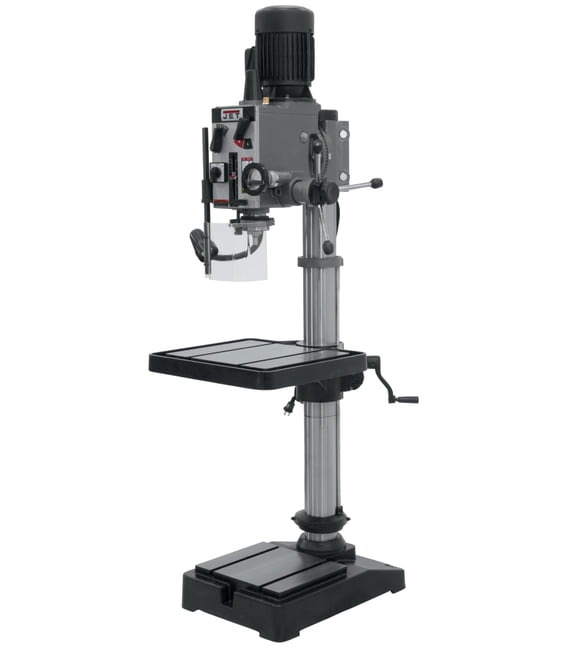

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360 around the column enhance overall use and supply premier results.

GHD-20, 20" Gear Head Drill Press 230V, 3Ph

Features & Benefits

  • Easily accessible table raiser
  • Head tilts left or right
  • Large production table and T-slotted base
  • Three power downfeed rates
SAP EAN Number Code (UPC)662755803840
Model NumberGHD-20
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight698
SAP Weight UnitLBS
SAP Net weight660
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products561702,561704,561706,561708,561709
Base Dimensions (In.)26 x 18
Base Work Table (In.)15-1/4 x 13
Column Diameter (In.)4-1/2
Distance Column to Spindle (In.)10
Drilling Capacity Cast Iron (In.)1-1/2
Drilling Capacity Mild Steel (In.)1-1/4
Drills to Center of Circle (In.)20.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order4.0000
Motor (HP)2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.)32 x 24 x 71
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3
Quill FeedManual
Range of Spindle Speeds (RPM)60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base (In.)44-15/16
Spindle Distance to Table (Max.) (In.)30-1/2
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-3
Spindle Travel (In.)5
Style (Type)Geared Head
Table Size (L x W) (In.)21-3/4 x 19-1/2
Table Travel (In.)25-1/2
T-Slot Centers (In.)9
Weight (Lbs.)660.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)275

Part #: 354020

Price: $5,119.00
Quantity:
