GHD-20PF GRD HD DRL W/PWR FEED

Name: GHD-20PF GRD HD DRL W/PWR FEED
Brand: Jet
SKU: 354024
Price: 6129.00 USD
Availability: InStock

Geared Head Drill Presses

<< Back

Achieve precision drilling from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable drill press with a Two Year Warranty.

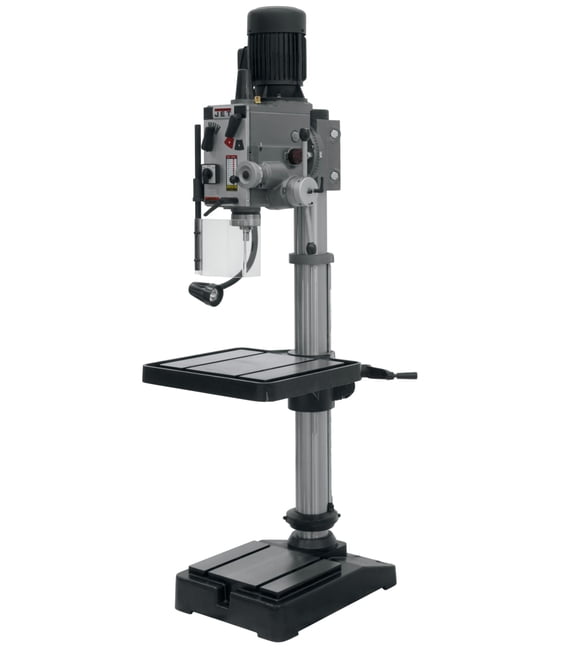

GHD-20PF, 20" Gear Head Drill Press With Power Down feed 230V, 3Ph

Features & Benefits

Easily accessible table raiser
Head tilts left or right
Large production table and T-slotted base
Three power downfeed rates

SAP EAN Number Code (UPC)	662755803857
Model Number	GHD-20PF
SAP Base Unit of Measure	EA
SAP Commodity Code	8459.29.0020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Gross Weight	700
SAP Weight Unit	LBS
SAP Net weight	660
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	561702,561704,561706,561708,561709
Base Dimensions (In.)	26 x 18
Base Work Table (In.)	15-1/4 x 13
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-1/4
Drills to Center of Circle (In.)	20.0000
Drills to Center of Circle (In.) (Unit)	Inch
End User Sellable	No
Item Display Order	6.0000
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3
Quill Feed	Manual
Range of Spindle Speeds (RPM)	60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base (In.)	44-15/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Taper (In. x TPI) (English United States, Ecommerce)	MT-3
Spindle Travel (In.)	4-1/2
Style (Type)	Geared Head
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Table Travel (In.)	25-1/2
T-Slot Centers (In.)	9
Weight (Lbs.)	660.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	275

Part #: 354024

Price: $6,129.00

Quantity:
