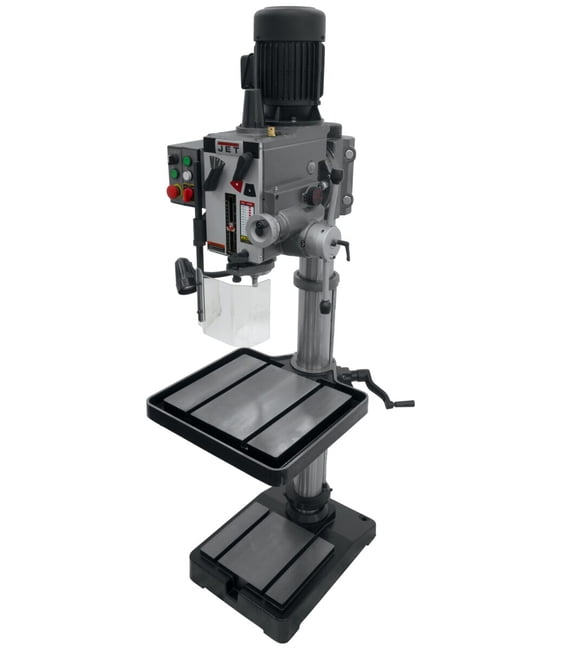

GHD-20PFT GEARED HD DRILL W/TAPPING

Name: GHD-20PFT GEARED HD DRILL W/TAPPING
Brand: Jet
SKU: 354026
Price: 6859.00 USD
Availability: InStock

Geared Head Drill Presses

<< Back

Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, power downfeed speed selector, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty.

GHD-20PFT, 20" Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph

Features & Benefits

Easily accessible table raiser
Head tilts left or right
Heavy-duty design allows a variety of precision drilling and tapping applications
Integrated tapping and reversing controls
Large production table and T-slotted base
Power downfeed speed selector

SAP EAN Number Code (UPC)	662755161469
Model Number	GHD-20PFT
SAP Base Unit of Measure	EA
SAP Commodity Code	8459.29.0020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Gross Weight	708
SAP Weight Unit	LBS
SAP Net weight	708
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	561702,561704,561706,561708,561709
Base Dimensions (In.)	26 x 18
Base Work Table (In.)	15-1/4 x 13
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-1/4
Drills to Center of Circle (In.)	20.0000
Drills to Center of Circle (In.) (Unit)	Inch
End User Sellable	No
Item Display Order	5.0000
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3
Quill Feed	Manual
Range of Spindle Speeds (RPM)	60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base (In.)	44-5/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Taper (In. x TPI) (English United States, Ecommerce)	MT-3
Spindle Travel (In.)	4-1/2
Style (Type)	Geared Head
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Table Travel (In.)	25-1/2
Tapping Capacity Cast Iron (In.)	15/16
Tapping Capacity Mild Steel (In.)	15/16
T-Slot Centers (In.)	9
Weight (Lbs.)	708.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	275
