GHD-20T GEARED HD DRLL W/TPPNG

Name: GHD-20T GEARED HD DRLL W/TPPNG
Brand: Jet
SKU: 354022
Price: 5889.00 USD
Availability: InStock

Geared Head Drill Presses

<< Back

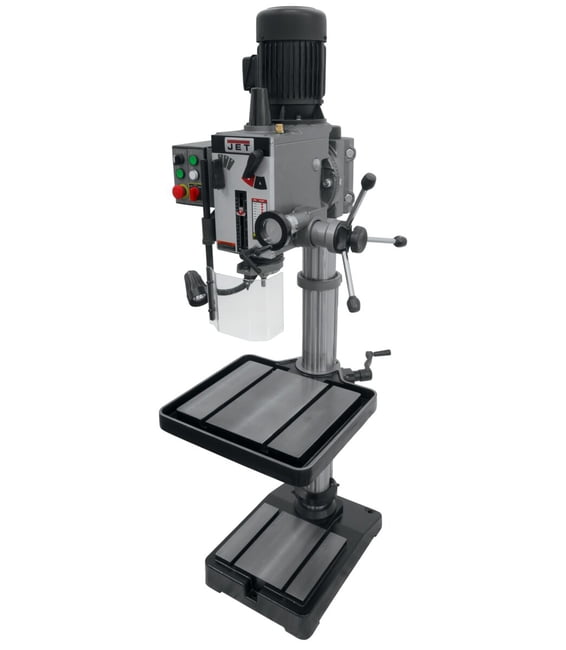

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 12 spindle speeds, and a head and table that rotate 360 around the column enhance overall use and supply premier results.

GHD-20T, 20" Gear Head Tapping Drill Press 230V, 3Ph

Features & Benefits

Easily accessible table raiser
Head tilts left or right
Heavy-duty design allows a variety of precision drilling and tapping applications
Integrated tapping and reversing controls
Large production table and T-slotted base

SAP EAN Number Code (UPC)	662755161452
Model Number	GHD-20T
SAP Base Unit of Measure	EA
SAP Commodity Code	8459.29.0020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Gross Weight	739
SAP Weight Unit	LBS
SAP Net weight	700
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	561702,561704,561706,561708,561709
Base Dimensions (In.)	26 x 18
Base Work Table (In.)	15-1/4 x 13
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-1/4
Drills to Center of Circle (In.)	20.0000
Drills to Center of Circle (In.) (Unit)	Inch
End User Sellable	No
Item Display Order	7.0000
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3
Quill Feed	Manual
Range of Spindle Speeds (RPM)	60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base (In.)	44-5/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Taper (In. x TPI) (English United States, Ecommerce)	MT-3
Spindle Travel (In.)	5
Style (Type)	Geared Head
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Table Travel (In.)	25-1/2
Tapping Capacity Cast Iron (In.)	15/16
Tapping Capacity Mild Steel (In.)	15/16
T-Slot Centers (In.)	9
Weight (Lbs.)	700.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	275

Part #: 354022

Price: $5,889.00

Quantity:
