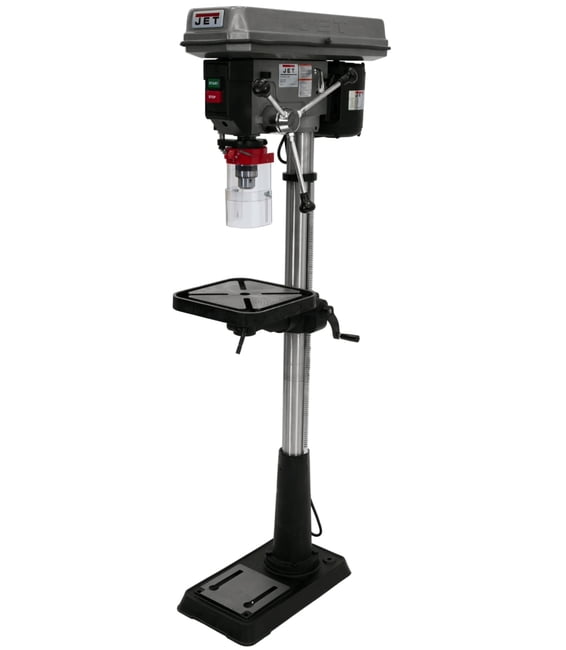

J-2500 15" FLOOR DRILL PRESS 115/230V
J-2500 15" FLOOR DRILL PRESS 115/230VJ-2500 15" FLOOR DRILL PRESS 115/230VJ-2500 15" FLOOR DRILL PRESS 115/230V
J-2500 15" FLOOR DRILL PRESS 115/230VJ-2500 15" FLOOR DRILL PRESS 115/230VJ-2500 15" FLOOR DRILL PRESS 115/230V

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

J-2500, 15" Floor Model Drill Press 115V 1Ph

Features & Benefits

  • 3-1/8" stroke for deep hole applications
  • Cast iron head
  • Constructed to provide a solid base for drilling
  • Large ground steel column for maximum head and table support
  • Large quill allows greater accuracy
  • Telescoping safety spindle guard
  • The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
SAP EAN Number Code (UPC)662756092649
Model NumberJ-2500
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length54
SAP Unit of DimensionIN
SAP Height10.5
SAP Unit of DimensionIN
SAP Width20
SAP Unit of DimensionIN
SAP Gross Weight167
SAP Weight UnitLBS
SAP Net weight167
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products561702,561704,561706,561708,561709
Base Dimensions (In.)11 x 19-1/2
Column Diameter (In.)2-7/8
Distance Column to Spindle (In.)7-1/2
Drilling Capacity Cast Iron (In.)5/8
Drilling Capacity Mild Steel (In.)1/2
Drills to Center of Circle (In.)15.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order10.0000
Motor (HP)3/4 HP, 115/230V, 1Ph
Number of Spindle Speeds16
Overall Dimensions (L x W x H) (In.)31 x 13 x 63
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Spindle Distance to Base (In.)48
Spindle Distance to Table (Max.) (In.)24
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-2
Spindle Travel (In.)3-3/8
Style (Type)Belt Drive
Table Size (L x W) (In.)11-1/2 x 11-1/2
Table Travel (In.)24
T-Slots Number and Size (In.)3 - 5/8
Weight (Lbs.)167.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)44

Part #: 354400

Price: $999.00
Quantity:
