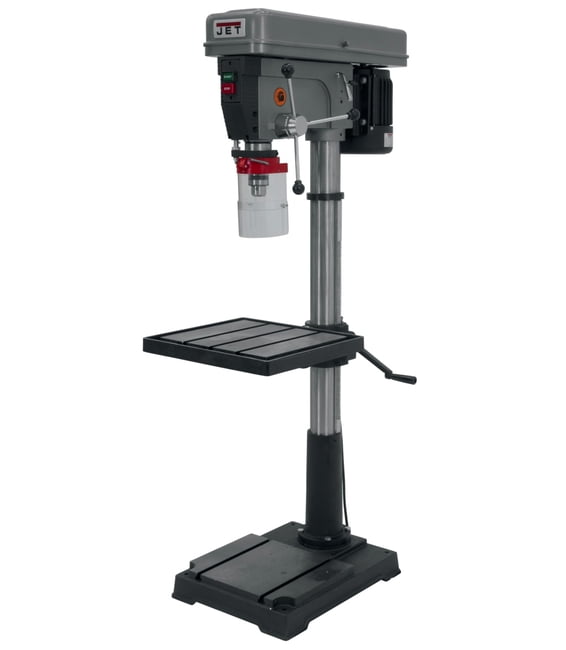

J-2550 20" FLOOR MODEL DRILL PRESS 1HP

Name: J-2550 20" FLOOR MODEL DRILL PRESS 1HP
Brand: Jet
SKU: 354402
Price: 1729.00 USD
Availability: InStock

Step Pulley & Variable Speed Drill Presses

<< Back

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

J-2550, 20" Floor Model Drill Press 115V 1Ph

Features & Benefits

4-3/4" stroke for deep hole applications
Cast iron head
Constructed to provide a solid base for drilling
Large ground steel column for maximum head and table support
Large production table tilts 45
Large quill allows greater accuracy
Telescoping safety spindle guard
The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

SAP EAN Number Code (UPC)	662756092663
Model Number	J-2550
SAP Base Unit of Measure	EA
SAP Commodity Code	8459.29.0020
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	56.5
SAP Unit of Dimension	IN
SAP Height	13
SAP Unit of Dimension	IN
SAP Width	26
SAP Unit of Dimension	IN
SAP Gross Weight	304
SAP Weight Unit	LBS
SAP Net weight	304
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	561702,561704,561706,561708,561709
Base Dimensions (In.)	22-3/4 x 17-3/4
Column Diameter (In.)	3-5/8
Distance Column to Spindle (In.)	10
Drilling Capacity Cast Iron (In.)	3/4
Drilling Capacity Mild Steel (In.)	5/8
Drills to Center of Circle (In.)	20.0000
Drills to Center of Circle (In.) (Unit)	Inch
End User Sellable	No
Item Display Order	11.0000
Motor (HP)	1 HP, 115/230V, 1Ph
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	33-1/2 x 18-1/2 x 67
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
Spindle Distance to Base (In.)	43-1/2
Spindle Distance to Table (Max.) (In.)	24
Spindle Taper (In. x TPI) (English United States, Ecommerce)	MT-3
Spindle Travel (In.)	4-3/4
Style (Type)	Belt Drive
Table Size (L x W) (In.)	18-11/16 x 16-3/4
Table Travel (In.)	21-1/2
T-Slots Number and Size (In.)	3 and 1/2
T-Slot Centers (In.)	4
Weight (Lbs.)	304.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	66
