J-720R RADIAL DRILL PRESS 3HP, 230/460V

Radial Drills Drill Presses

<< Back

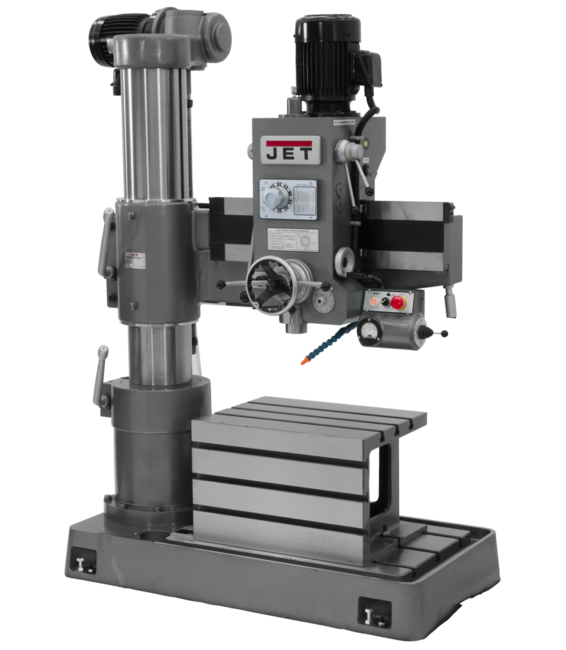

J-720R RADIAL DRILL PRESS 3HP, 230/460V
J-720R RADIAL DRILL PRESS 3HP, 230/460VJ-720R RADIAL DRILL PRESS 3HP, 230/460VJ-720R RADIAL DRILL PRESS 3HP, 230/460V
J-720R RADIAL DRILL PRESS 3HP, 230/460VJ-720R RADIAL DRILL PRESS 3HP, 230/460VJ-720R RADIAL DRILL PRESS 3HP, 230/460V
J-720R RADIAL DRILL PRESS 3HP, 230/460V

The apex of heavy-duty JET Radial Arm Drill Presses are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

J-720R, 3' Arm Radial Drill Press 230/460V

Features & Benefits

  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
SAP EAN Number Code (UPC)662756093578
Model NumberJ-720R
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0050
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length32
SAP Unit of DimensionIN
SAP Height83
SAP Unit of DimensionIN
SAP Width64
SAP Unit of DimensionIN
SAP Gross Weight2970
SAP Weight UnitLBS
SAP Net weight2697
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products561702,561704,561706,561708,561709
Arm Travel Vertical (In.)23-13/16
Base Dimensions (In.)49-5/8 x 25-3/16 x 6-1/4
Boring Capacity Cast Iron (In.)4
Boring Capacity Steel (In.)2-3/8
Column Diameter (In.)8-1/4
Coolant Pump Motor1/8
Distance Spindle to Column (Max.) (In.)29-1/2
Drilling Capacity Cast Iron (In.)2
Drilling Capacity Mild Steel (In.)1-1/2
Elevating Motor (English United States, Ecommerce)1
End User SellableNo
Item Display Order5.0000
Machine Height from Floor (In.)85-7/16
Motor (HP)3 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)64 x 32 x 85
Prop 65Cancer and Reproductive Harm
Quill Down Feed Rates (IPR)3 (.002, .004, .006)
Quill Travel w/ Powerfeed Engaged (In.)8-1/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-4
Style (Type)Radial Drill
Table Size (L x W) (In.)23-5/8 x 17-1/2 x 15
Tapping Capacity Cast Iron (In.)1
Tapping Capacity Mild Steel (In.)3/4
Travel of Head Horizontal (In.)20-7/8
Weight (Lbs.)2697.0000
Weight (Lbs.) (Unit)Pound

Part #: 320033

Price: $0.00
Quantity:
