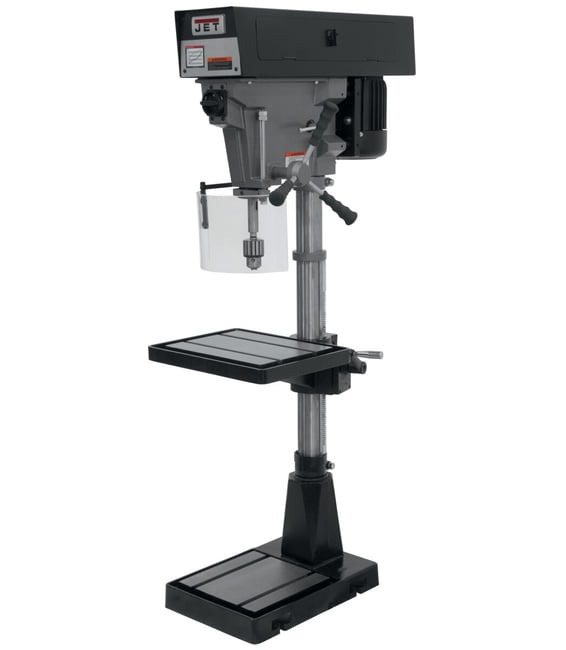

J-A3816 15" 6 SPEED FLOOR MODEL DRILL

Name: J-A3816 15" 6 SPEED FLOOR MODEL DRILL
Brand: Jet
SKU: 354500
Price: 2369.00 USD
Availability: InStock

Step Pulley & Variable Speed Drill Presses

<< Back

JETs heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes

J-A3816, 15" 6-Speed Floor Model Drill Press 115/230V 1Ph

Features & Benefits

1/2" Drill chuck and arbor included
3" column for maximum head support
6-Spindle Speeds from 375 to 5,000 RPM
Constructed to provide a solid base for drilling
Larger quill provides greater accuracy

SAP EAN Number Code (UPC)	662756092670
Model Number	J-A3816
SAP Base Unit of Measure	EA
SAP Commodity Code	8459.29.0020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	21.5
SAP Unit of Dimension	IN
SAP Height	70
SAP Unit of Dimension	IN
SAP Width	32.5
SAP Unit of Dimension	IN
SAP Gross Weight	450
SAP Weight Unit	LBS
SAP Net weight	394
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	561702,561704,561706,561708,561709
Base Dimensions (In.)	20-7/8 x 14-3/16 x 3-1/8
Base Work Table (In.)	12-1/8 x 11-13/16
Column Diameter (In.)	3
Distance Column to Spindle (In.)	15
Drilling Capacity Cast Iron (In.)	5/8
Drilling Capacity Mild Steel (In.)	1/2
Drills to Center of Circle (In.)	15.0000
Drills to Center of Circle (In.) (Unit)	Inch
End User Sellable	No
Item Display Order	13.0000
Motor (HP)	1 HP, 115/230V, 1Ph
Number of Spindle Speeds	6
Overall Dimensions (L x W x H) (In.)	30 x 20 x 71
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	375, 625, 1,125, 1,950, 3,400, 5,000
Spindle Distance to Base (In.)	44-1/2
Spindle Distance to Table (Max.) (In.)	25-3/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)	MT-2
Spindle Travel (In.)	6
Style (Type)	Belt Drive
Table Size (L x W) (In.)	15 x 18
Table Travel (In.)	16-3/4
T-Slots Number and Size (In.)	2 and 1/2
T-Slot Centers (In.)	5-5/16
Weight (Lbs.)	394.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	90

Part #: 354500

Price: $2,369.00
