JDP-20EVS-110 20INCH DRILL PRESS 120V

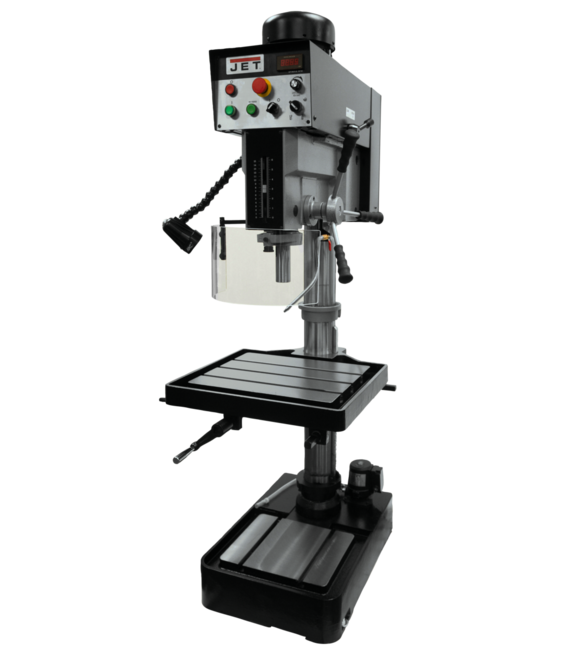

Name: JDP-20EVS-110 20INCH DRILL PRESS 120V
Brand: Jet
SKU: 354220
Price: 5959.00 USD
Availability: InStock

Step Pulley & Variable Speed Drill Presses

<< Back

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

JDP-20EVS-110, 1-1/2" Drilling Capacity, 2HP, 115V 1Ph

Features & Benefits

Coolant system is optional #5512104
CSA/CUS Certified
Front Mounted LED Spindle RPM Readout
Front mounted positive control depth stop
Heavy-duty steel column for increased precision and rigidity
High torque at all speeds both forward and reverse
Large Hand Grips designed with the users comfort in mind
Large precision ground T-Slot production table for easy set ups
Latest AC Inverter Variable Speed Technology
Spindle is supported by high quality ball bearings

SAP EAN Number Code (UPC)	731325503876
Model Number	JDP-20EVS-110
SAP Base Unit of Measure	EA
SAP Commodity Code	8465.95.0060
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	38.18
SAP Unit of Dimension	IN
SAP Height	79.52
SAP Unit of Dimension	IN
SAP Width	27.16
SAP Unit of Dimension	IN
SAP Gross Weight	792
SAP Weight Unit	LBS
SAP Net weight	792
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Base Dimensions (In.)	27 x 19
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10-7/16
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-3/8
Drills to Center of Circle (In.)	20.0000
Drills to Center of Circle (In.) (Unit)	Inch
End User Sellable	No
Inverter Type	115V, Single Phase
Item Display Order	24.0000
Motor (HP)	2 HP, 115V 1ph
Overall Dimensions (L x W x H) (In.)	38.18 x 27.16 x 79.52
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	65-540 /245- 2,000
Spindle Distance to Base (In.)	44-1/2
Spindle Distance to Table (Max.) (In.)	30-1/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)	MT-3
Spindle Travel (In.)	6
Style (Type)	Variable Speed
Table Size (L x W) (In.)	22x18-3/4
Table Travel (In.)	20
T-Slot Centers (In.)	7-7/16
Weight (Lbs.)	792.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	154
