JDP-20EVST-230 20 EVS DRILLPRESS TAPPING

Step Pulley & Variable Speed Drill Presses

<< Back

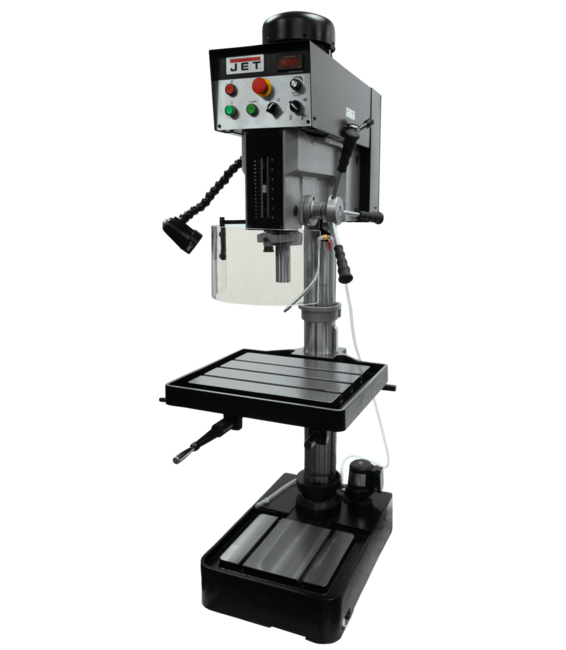

JDP-20EVST-230 20 EVS DRILLPRESS TAPPING

JET Electronic Variable Speed Drill Presses offer variable spindle speed rates between 65 and 2000 RPM for a wide variety of applications, supported by high quality ball bearings. Designed to permit continuous speed adjustment - even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. CSA/CUS Certified.

JDP-20EVST-230, 1-1/2" Drilling Capacity, 2HP, 230V 3Ph with Forward and Reverse Tapping capability

Features & Benefits

  • CSA Coolant System
  • Front Mounted LED Spindle RPM Readout
  • Front mounted positive control depth stop
  • Heavy-duty steel column for increased precision and rigidity
  • High torque at all speeds both forward and reverse
  • Large Hand Grips designed with the users comfort in mind
  • Large precision ground T-Slot production table for easy set ups
  • Latest AC Inverter Variable Speed Technology
SAP EAN Number Code (UPC)731325503883
Model NumberJDP-20EVST -230
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0060
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length38.18
SAP Unit of DimensionIN
SAP Height79.52
SAP Unit of DimensionIN
SAP Width27.16
SAP Unit of DimensionIN
SAP Gross Weight792
SAP Weight UnitLBS
SAP Net weight792
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (In.)27 x 19
Column Diameter (In.)4-1/2
Distance Column to Spindle (In.)10-7/16
Drilling Capacity Cast Iron (In.)1-1/2
Drilling Capacity Mild Steel (In.)1-3/8
Drills to Center of Circle (In.)20.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order25.0000
Motor (HP)2 HP, 230V 3ph
Overall Dimensions (L x W x H) (In.)38.18 x27.16 x 79.52
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)65-540 /245- 2,000
Spindle Distance to Base (In.)44-1/2
Spindle Distance to Table (Max.) (In.)30-1/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-3
Spindle Travel (In.)6
Style (Type)Variable Speed
Table Size (L x W) (In.)22x18-3/4
Table Travel (In.)20
Tapping Capacity Cast Iron (In.)7/8
Tapping Capacity Mild Steel (In.)3/4
T-Slot Centers (In.)7-7/16
Weight (Lbs.)792.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)154

Part #: 354225

Price: $6,399.00
