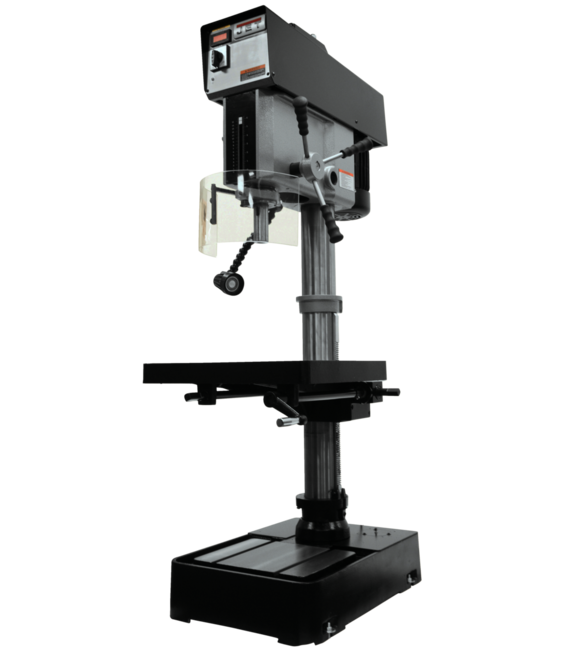

JDP-20VS-3 20" VS DRILL PRESS 3-PH

Solid design and construction deliver precision operation and control. JET 20 Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. Thats all on top of a steel column and a heavy-duty cast iron base.

JDP-20VS-3, 1-1/2 Drilling Capacity, 2HP, 3 230/460V 3Ph

Features & Benefits

  • CSA/CUS Certified
  • Front Mounted LED Spindle RPM Readout
  • Front mounted positive control depth stop
  • Head is massively constructed for more accuracy and rigidity & heavy duty cast iron design
  • Drill Chuck not included
  • Large Hand Grips designed with the users comfort in mind
  • Large precision ground T-Slot production table for easy set ups
  • Massive 3" quill diameter
  • Table rotates 360 around the column
  • Variable spindle speeds
SAP EAN Number Code (UPC)731325503913
Model NumberJDP-20VS-3
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length38.18
SAP Unit of DimensionIN
SAP Height79.52
SAP Unit of DimensionIN
SAP Width27.16
SAP Unit of DimensionIN
SAP Gross Weight780
SAP Weight UnitLBS
SAP Net weight780
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (In.)27 x 19
Column Diameter (In.)4-1/2
Drilling Capacity Cast Iron (In.)1-1/2
Drilling Capacity Mild Steel (In.)1-3/8
Drills to Center of Circle (In.)20.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order18.0000
Motor (HP)2HP, 230/ 460V,3ph ,4P
Overall Dimensions (L x W x H) (In.)38.18 x27.16 x79.52
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)300 - 2,000
Spindle Distance to Base (In.)44-1/2
Spindle Distance to Table (Max.) (In.)30-1/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-3
Spindle Travel (In.)6
Style (Type)Variable Speed
Table Size (L x W) (In.)22x18-3/4
Table Travel (In.)20
T-Slot Centers (In.)7-7/16
Weight (Lbs.)780.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)154

Part #: 354231

Price: $5,159.00
