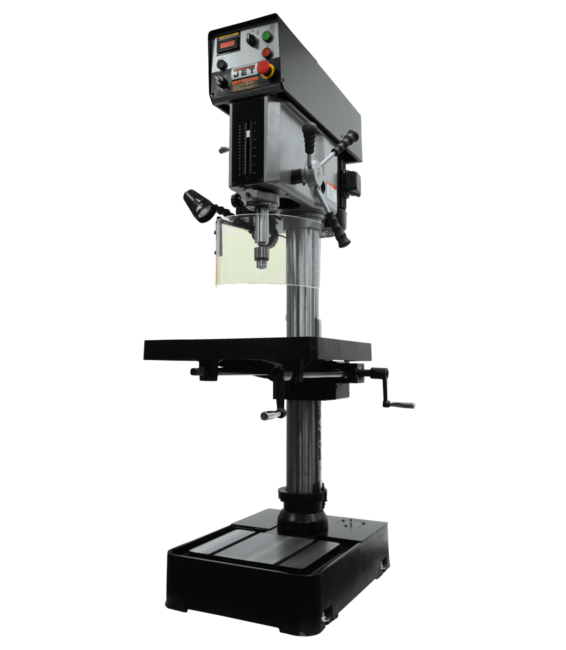

JDP20VST 20" VARIABLE SPEED DP W/TAPPING

Solid design and construction deliver precision operation and control. JET 20 Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. Thats all on top of a steel column and a heavy-duty cast iron base. CSA/CUS Certified.

JDP-20VST , 1-1/2 Drilling Capacity, 2HP, 230V, 3Ph

Features & Benefits

  • CSA Coolant System
  • Front Mounted LED Spindle RPM Readout
  • Front mounted positive control depth stop
  • Large Hand Grips designed with the users comfort in mind
  • Large precision ground T-Slot production table for easy set ups
  • Massive 3" quill diameter
  • Table rotates 360 around the column
  • Drill Chuck not included
SAP EAN Number Code (UPC)731325503920
Model NumberJDP-20VST
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length38.18
SAP Unit of DimensionIN
SAP Height79.52
SAP Unit of DimensionIN
SAP Width27.16
SAP Unit of DimensionIN
SAP Gross Weight780
SAP Weight UnitLBS
SAP Net weight780
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (In.)27 x 19
Column Diameter (In.)4-1/2
Drilling Capacity Cast Iron (In.)1-1/2
Drilling Capacity Mild Steel (In.)1-3/8
Drills to Center of Circle (In.)20.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order19.0000
Motor (HP)2HP, 230V,3ph
Overall Dimensions (L x W x H) (In.)38.18 x27.16 x 79.52
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)150 - 2,000
Spindle Distance to Base (In.)44-1/2
Spindle Distance to Table (Max.) (In.)30-1/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-3
Spindle Travel (In.)6
Style (Type)Variable Speed
Table Size (L x W) (In.)22x18-3/4
Table Travel (In.)20
Tapping Capacity Cast Iron (In.)3/4
Tapping Capacity Mild Steel (In.)5/8
T-Slot Centers (In.)7-7/16
Weight (Lbs.)780.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)154

Part #: 354240

Price: $5,839.00
