JDPE-20EVSC-PDF EVS/115V/1PH DRILL PRESS

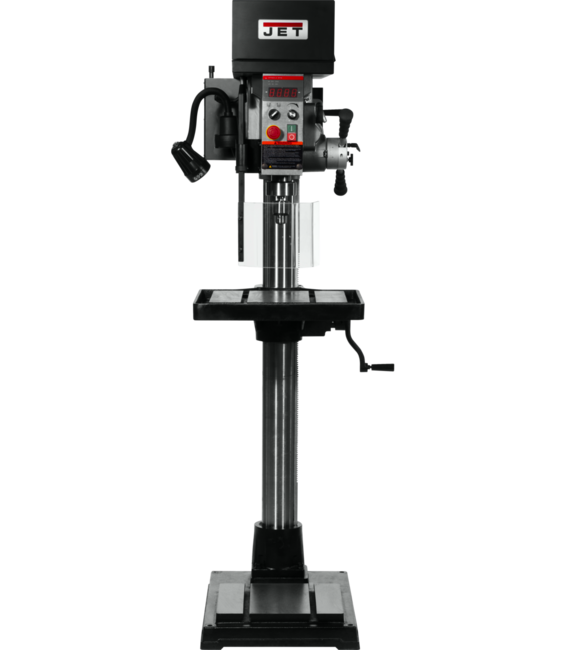

The 20'' JET JDPE-20EVS-PDF Drill Press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support. Engineered to maximize output, the 20 EVS Drill Press includes a three-speed power down feed for heavy drilling applications and capable of running various spindle speeds from 50 to 2000 RPMs. CSA/CUS Certified.

The JET JDPE-20EVSC-PDF 1-1/4" Drilling Capacity, 2HP, 115V, 1Ph Electronic Variable Speed Drill with Clutch Speed Change system and Power Downfeed

Features & Benefits

  • Casted head for more accuracy and rigidity
  • Emergency stop allows for immediate shut off
  • Forward and reverse switch for instant tapping mode
  • Front Mounted LED Spindle RPM Readout
  • Heavy casted column prevents failures prolonging the life of the machine
  • LED machine lamp delivers extra light for more precise drilling
  • Speed changes using a clutch system
  • Spindle guard protects user from flying debris
  • Spindle power down feed system
SAP EAN Number Code (UPC)731325789621
Model NumberJDPE-20EVSC-PDF
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length32.59
SAP Unit of DimensionIN
SAP Height70.39
SAP Unit of DimensionIN
SAP Width22.63
SAP Unit of DimensionIN
SAP Gross Weight582
SAP Weight UnitLBS
SAP Net weight493
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (In.)17.7 x 25-1/2
Base Work Table (In.)14-3/16  x 13
Column Diameter (In.)4
Distance Column to Spindle (In.)26-1/2
Drilling Capacity Cast Iron (In.)1-1/4
Drilling Capacity Mild Steel (In.)1-1/8
Drills to Center of Circle (In.)10.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Inverter TypeJET Exclusive
Inverter Type / Power Source2HP/115V/1PH
Item Display Order28.0000
Motor (HP)1.5HP, 230V, 3PH
Overall Dimensions (L x W x H) (In.)32-3/5 x 22-2/3 x 70-25/64
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)2.16
Spindle Distance to Base (In.)48-1/4
Spindle Distance to Table (Max.) (In.)46.85
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-3
Spindle Travel Auto (In.)4-1/4
Spindle Travel, Manual (In.)5
Swing (In.)19-11/16
Table Size (L x W) (In.)16-1/2 x 18-1/2
Tapping Capacity Mild Steel (In.)5/8
T-Slots Number and Size (In.)2, 1/2

Part #: 354251

Price: $4,999.00
