E-1236VS W/ 303 & TAK

EVS

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

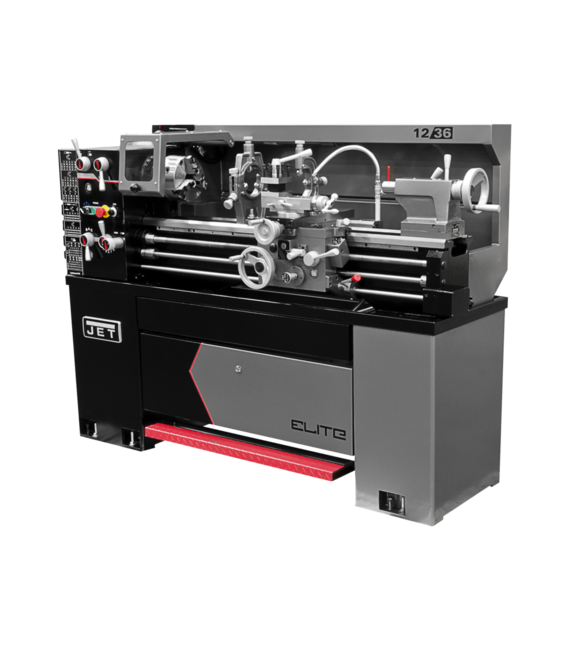

E-1236VS With ACU-RITE 303 DRO With Taper Attachment

Features & Benefits

4-Position Carriage Stop
Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine
Hardened and ground gears in headstock reduce vibration and deflection
Integrated locking tool cabinet in stand on 12" Lathe
Inverter drive system provides infinitely variable spindle speeds
LED RPM readout allows for precise turning speeds
Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

SAP EAN Number Code (UPC)	731325282290
Model Number	E-1236VS
SAP Base Unit of Measure	EA
SAP Country of Origin	Taiwan
Warranty	3 Year Elite
SAP Delivery Plant	JNA
SAP Gross Weight	1477
SAP Weight Unit	LBS
SAP Net weight	1213
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	650295,892005,892006,892007,892058,892092
BOM Products	892000,892005,T303-0636J
30 Point inspection	JET Elite 30 Point
Amperage Draw @ 230V 3Ph	19
Amperage Draw @ 230V 1Ph	27
Compound Slide Travel (In.)	3-1/2
Drive	EVS
End User Sellable	No
Item Display Order	42.0000
Length of Gap (In.)	9-1/2
Max Tool Size (In.)	1/2 x 1/2
Motor (HP)	2 HP, 230V, 1 or 3 Ph
Number of Inch Threads	34.0000
Number of Longitudinal and Cross Feed Rates	50
Number of Metric Threads	33.0000
Overall Dimensions (L x W x H) (In.)	71 x 30 x 60
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0005 - 0.015
Range of Inch Threads (TPI)	2 - 56
Range of Longitudinal Feeds (IPR)	0.0016 - 0.046
Range of Metric Threads	0.5 - 12
Range of Spindle Speeds (RPM)	0 - 2,000
Size (English United States, Ecommerce)	12 x 36
Spindle Bore (In.)	1-9/16
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	1/4 - 2-1/2
Style (Type)	ELITE EVS
Swing Over Bed (In.)	12
Swing Over Cross Slide (In.)	7-5/16
Swing Through Gap (In.)	17-1/2
Tailstock Spindle Travel (In.)	4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1212.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	7-1/2

Part #: 892312

Price: $20,859.00
