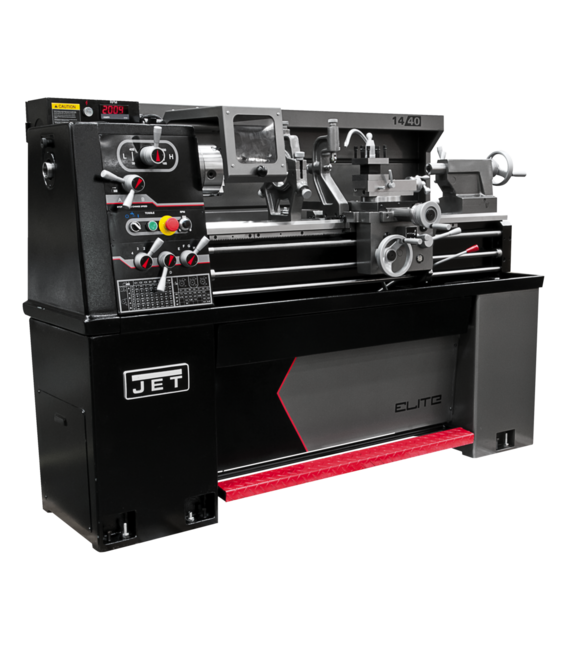

E-1340VS W/ DP700 & TAK

EVS

Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!

E-1340VS With Newall DP700 DRO With Taper Attachment

Features & Benefits

4-Position Carriage Stop
Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine
Hardened and ground gears in headstock reduce vibration and deflection
Heavy-duty stand with full length foot brake
Inverter drive system provides infinitely variable spindle speeds
LED RPM readout allows for precise turning speeds
Overload clutch at feed shaft prevents the carriage from crashing into the chuck
Steady Rest-Ball Bearing
Variable spindle speeds

SAP EAN Number Code (UPC)	731325282641
Model Number	E-1340VS
SAP Base Unit of Measure	EA
SAP Country of Origin	Taiwan
Warranty	3 Year Elite
SAP Delivery Plant	JNA
SAP Gross Weight	1697
SAP Weight Unit	LBS
SAP Net weight	1433
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	650295,892007,892035,892036,892037,892058,892093
BOM Products	892020,892035,J632DP700
30 Point inspection	JET Elite 30 Point
Amperage Draw @ 230V 3Ph	19
Compound Slide Travel (In.)	3-1/2
Drive	EVS
End User Sellable	No
Item Display Order	65.0000
Length of Gap (In.)	9
Max Tool Size (In.)	5/8 x 5/8
Motor (HP)	3 HP, 230V, 3Ph
Number of Inch Threads	40.0000
Number of Longitudinal and Cross Feed Rates	80
Number of Metric Threads	22.0000
Overall Dimensions (L x W x H) (In.)	67 x 30 x 57
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0003 - 0.01
Range of Inch Threads (TPI)	4 - 112
Range of Longitudinal Feeds (IPR)	0.0012 - 0.0294
Range of Metric Threads	0.45 - 7.5
Range of Spindle Speeds (RPM)	0 - 2,200
Size (English United States, Ecommerce)	13 x 40
Spindle Bore (In.)	1-1/2
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	1/4 - 2-3/4
Style (Type)	ELITE EVS
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-5/8
Swing Through Gap (In.)	19
Tailstock Spindle Travel (In.)	4-3/4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1433.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	8-1/2

Part #: 892420

Price: $24,887.00
