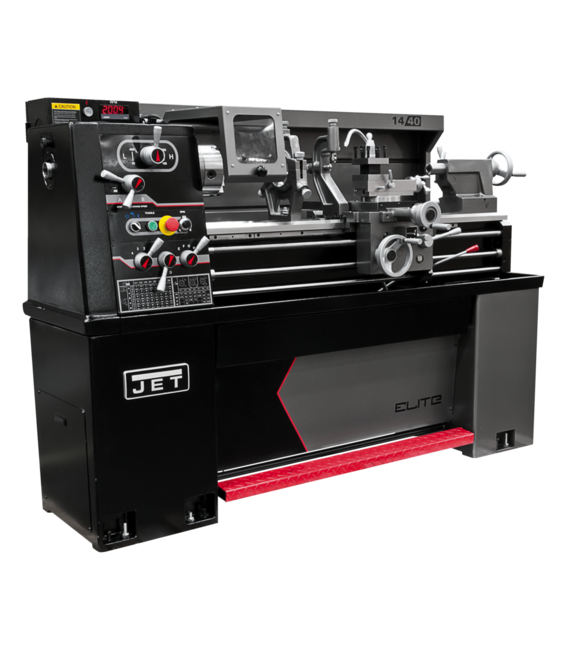

E-1440VS With ACU-RITE 203 CSS DRO With Taper Attachment and Collet Closer

EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Features & Benefits

Electromagnetic assisted foot brake for rapid braking
Inverter drive system provides infinitely variable spindle speeds
Steady and follow rest feature double sealed ball bearing guides for smooth material movements
Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine
1-1/2" Spindle Bore
Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Hardened and ground gears in headstock reduce vibration and deflection
Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

UPC	731325282818
SAP Material Group	MW01
SAP Material Type	ZFIN
SAP Warranty	3 Year Elite
Model Number	E-1440VS
SAP Owner	JME
SAP Division	1
SAP Country of Origin	TW
SAP Product Category	MWE
SAP Rounding Profile	NA
SAP Height	0.000
SAP Length	0.000
SAP Volume	0.000
SAP Width	0.000
Prop 65	Cancer and Reproductive Harm
Motor (HP)	3 HP, 230V, 3Ph
Accessory 2	Collet Closer
Weight (Lbs.)	1653
Follow Rest Capacity (In.)	1/4 - 2-3/8
Swing Through Gap (In.)	20
Overall Dimensions (L x W x H) (In.)	77 x 30 x 58
Range of Cross Feeds (IPR)	0.0003 - 0.01
Steady Rest Capacity (In.)	1/4 - 2-3/4
Spindle Bore (In.)	1-1/2
Drive	EVS
Range of Inch Threads (TPI)	4 - 112
Digital Readout	ACU-RITE 203 W/ CSS
Range of Spindle Speeds (RPM)	0 - 2,200
Spindle Taper with Sleeve	MT-5
Number of Longitudinal and Cross Feed Rates	80
Size	14 x 40
Number of Metric Threads	22
Accessory 1	Taper Attachment
Range of Metric Threads	0.45 - 7.5
Swing Over Bed (In.)	14
Length of Gap (In.)	9
Distance Between Centers (In.)	40
Number of Spindle Speeds	Variable
Compound Slide Travel (In.)	4
Number of Inch Threads	40
Spindle Mount	D1-4
Cross Slide Travel (In.)	7
Swing Over Cross Slide (In.)	8-5/8
Width of Bed (In.)	8-1/2
Max Tool Size (In.)	7/8 x 7/8
Style (Type)	ELITE EVS
Range of Longitudinal Feeds (IPR)	0.0012 - 0.0294
Taper in Tailstock Spindle	MT-3
Coolant Pump Motor	1/8 HP
Tailstock Spindle Travel (In.)	4-3/4
Ampearge Draw @ 230V 3Ph	9
