ECB-1422V ELITE 14" DUAL COL. SEMI AUTO
ECB-1422V ELITE 14" DUAL COL. SEMI AUTOECB-1422V ELITE 14" DUAL COL. SEMI AUTOECB-1422V ELITE 14" DUAL COL. SEMI AUTO
ECB-1422V ELITE 14" DUAL COL. SEMI AUTOECB-1422V ELITE 14" DUAL COL. SEMI AUTOECB-1422V ELITE 14" DUAL COL. SEMI AUTO
ECB-1422V ELITE 14" DUAL COL. SEMI AUTOECB-1422V ELITE 14" DUAL COL. SEMI AUTOECB-1422V ELITE 14" DUAL COL. SEMI AUTO

JET Elite's Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.

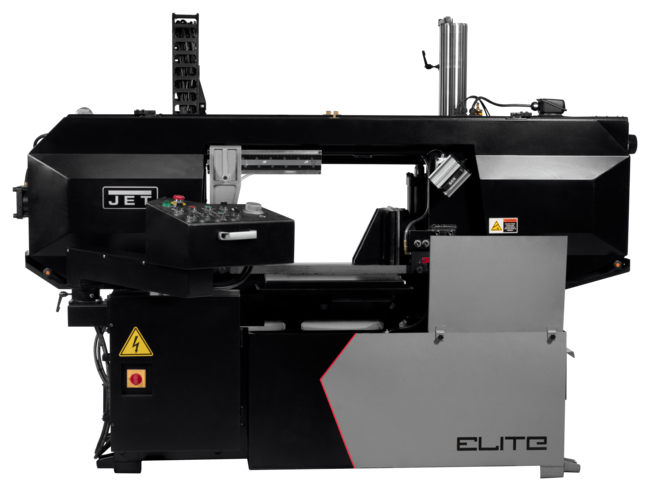

ECB-1422V, 14 x 22" Semi-Automatic Variable Speed Dual Column Bandsaw 5HP, 230/460V, 3Ph"

Features & Benefits

  • Heavy duty construction reduces vibration and deflection
  • Easy frame height adjustment
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Mechanical variable speed drive system for easy speed changes
  • Semi-auto on saw bow lifting and hydraulic vise
  • Swing away control box allows Operator to use in any position
  • Two column design for more productive cutting
SAP EAN Number Code (UPC)731325806847
Model NumberECB-1422V
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Length98
SAP Unit of DimensionIN
SAP Height74
SAP Unit of DimensionIN
SAP Width31
SAP Unit of DimensionIN
SAP Gross Weight2992
SAP Weight UnitLBS
SAP Net weight2266
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Blade Size (In.)1.33 x 0.043 x 192-1/8
30 Point inspectionJET 30 Point
Bed Height (In.)29
Blade Length (In.)192-1/2
Blade Speeds (SFPM)75 - 250
Blade Speed (SFPM)75 - 250
Blade Wheel Diameter (In.)18-1/2
Coolant Capacity (Gal.)23.8
Coolant Pump Motor1/6HP, 230/460V
Cutting Capacity (W x D) (In.)14 x 22
DriveVariable Speed
Easy2 URLhttps://content.jettools.com/assets/3d/Elite_EVS_Bandsaw.html
Electrics5HP, 230/460V, 3ph
Gross Weight (Lbs)2508.0000
Gross Weight (Lbs) (Unit)Pound
Motor (HP)5 HP, 230/460V, 3Ph
Net Weight (Lbs.)2266.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)93-1/2 x 25-29/32 x 72-23/32
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.)14-1/8 x 22
Round at 90 Degrees (In.)14-1/8
Square at 90 Degrees (In.)14-1/8
Throat Capacity (In.)14 x 17
Weight (Lbs.)2266.0000
Weight (Lbs.) (Unit)Pound
Oil Pump Motor1HP, 230/460V, 3Ph

Part #: 891160

Price: $30,679.00
