EHB-1018V Elite 10x18 VS Bandsaw
EHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS Bandsaw
EHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS Bandsaw
EHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS Bandsaw
EHB-1018V Elite 10x18 VS BandsawEHB-1018V Elite 10x18 VS Bandsaw

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.

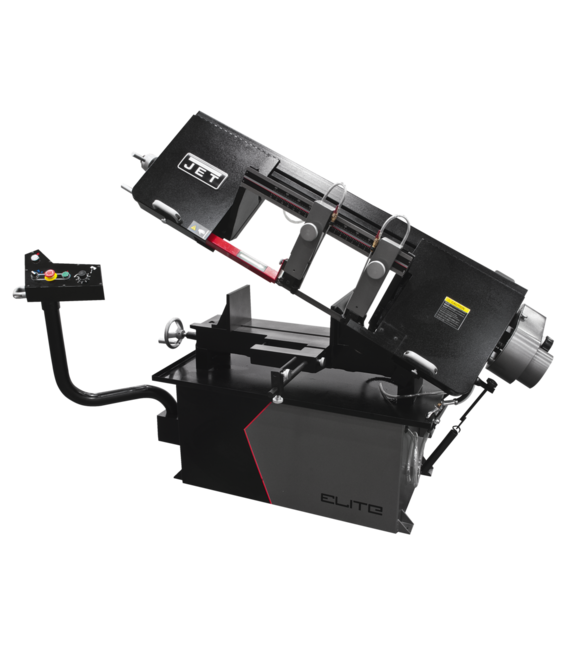

EHB-1018V, 10 x 18 Variable Speed Bandsaw

Features & Benefits

  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Quick positioning vise for clamping of materials
  • The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
  • Variable speed drive train allows operator to fine tune the blade speed fast and easily
SAP EAN Number Code (UPC)731325265576
Model NumberEHB-1018V
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Length76
SAP Unit of DimensionIN
SAP Height48.5
SAP Unit of DimensionIN
SAP Width29.5
SAP Unit of DimensionIN
SAP Gross Weight705
SAP Weight UnitLBS
SAP Net weight705
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products891096
Blade Size (In.)1 x .035 x 132-1/2
Bed Height (In.)27
Blade Length (In.)132-1/2
Blade Speeds (SFPM)53 - 275
Blade Speed (SFPM)53-257
Blade Wheel Diameter (In.)14
Cutting Capacity (W x D) (In.)10 x 18
DriveVariable Speed
Electrics2HP, 230V, 1Ph
End User SellableNo
Gross Weight (Lbs)814.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order1.0000
Motor (HP)2 HP, 230V, 1Ph
Net Weight (Lbs.)704.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)74 x 30 x 44
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)8-1/2 x 9
Rectangle at 90 Degrees (In.)18 x 3-1/2
Round at 45 Degrees (In.)9
Round at 90 Degrees (In.)10
Shipping Dimensions (L x W x H) (In.)74 x 30 x 44
Square at 45 Degrees (In.)8-1/2 x 8-1/2
Square at 90 Degrees (In.)10 x 10
Vise Swivels (Deg.)45
Weight (Lbs.)814.0000
Weight (Lbs.) (Unit)Pound

Part #: 891060

Price: $7,689.00
