A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with a variable speed drive train that allows the operator to fine tune the blade speed fast and easily. To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 inches. In addition, the ELITE swing away panel relocates saw controls to a single location, offering fingertip operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.

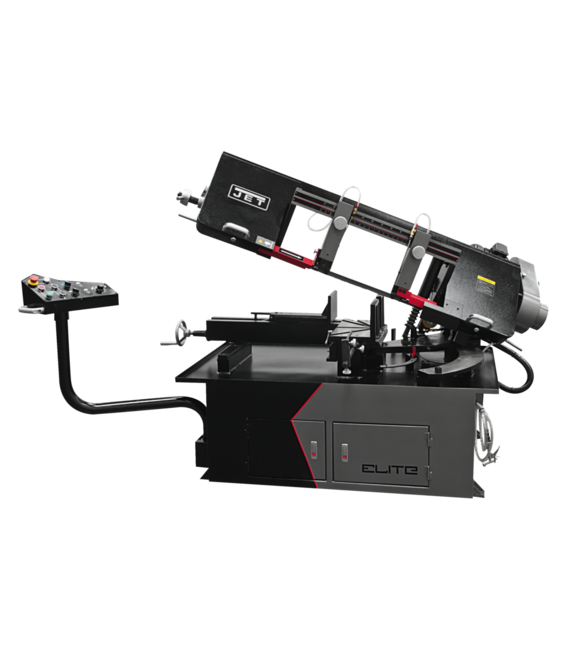

EHB-1018VM, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw

Features & Benefits

  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Dual mitering allows for compound angle cutting of 60 right and 45 left
  • Heavy-duty construction reduces vibration and deflection
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Quick positioning vise for clamping of materials
  • Semi-automatic bow raises after cut to predetermined height
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
SAP EAN Number Code (UPC)731325265583
Model NumberEHB-1018VM
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8090
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Length89.5
SAP Unit of DimensionIN
SAP Height50
SAP Unit of DimensionIN
SAP Width40.5
SAP Unit of DimensionIN
SAP Gross Weight1210
SAP Weight UnitLBS
SAP Net weight1100
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products891097
Blade Size (In.)1 x .035 x 144
30 Point inspectionJET Elite 30 Point
Bed Height (In.)27
Blade Length (In.)144
Blade Speeds (SFPM)53 - 257
Blade Speed (SFPM)53-257
Blade Wheel Diameter (In.)14
DriveVariable Speed
Electrics2HP, 230/460V/ 3-Ph
End User SellableNo
Gross Weight (Lbs)1144.0000
Gross Weight (Lbs) (Unit)Pound
Head Movement (Deg.)60
Item Display Order2.0000
Motor (HP)2 HP, 230/460V, 3Ph
Net Weight (Lbs.)1034.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)85 x 40 x 44
Overall Height (In.)44
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)10 x 12
Rectangle at 60 Degrees (In.)6 x 5
Rectangle at 90 Degrees (In.)10 x 17
Round at 45 Degrees (In.)10
Round at 60 Degrees (In.)6
Round at 90 Degrees (In.)10
Shipping Weight (Lbs.)1144.0000
Shipping Weight (Lbs.) (Unit)Pound
Square at 45 Degrees (In.)10 x 10
Square at 60 Degrees (In.)5-1/2 x 5-1/2
Square at 90 Degrees (In.)10 x 10
Vise Swivels (Deg.)45
Weight (Lbs.)1100.0000
Weight (Lbs.) (Unit)Pound
California Prop 65 WarningGeneral Prop 65 ONLY

Part #: 891070

Price: $13,339.00
Quantity:
