A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Designed with heavy-duty construction, these saws reduce vibration and deflection. Mitering and dual mitering saws bring added level of capabilities with dual mitering allowing for compound angle cutting of 60 right and 45 left. All saws come standard with variable speed drive train that allows the operator to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. The ELITE swing away panel relocates saw controls to a single location, offering finger-tip Bullets operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.

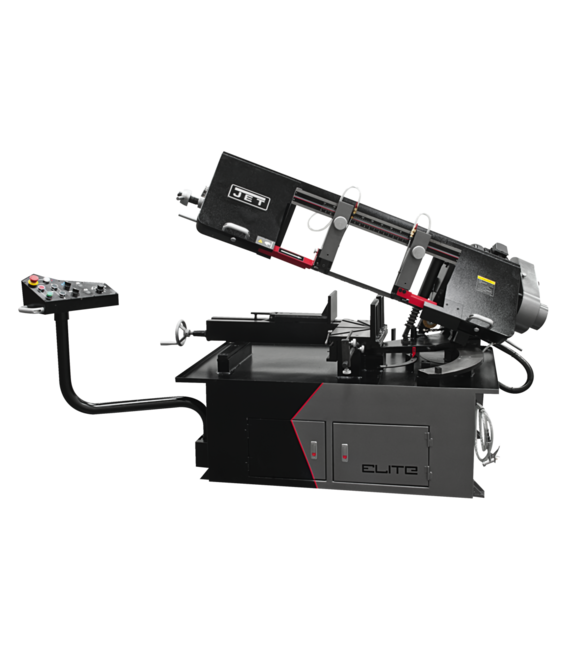

EHB-1018VMH, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise

Features & Benefits

  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Hydraulic quick positioning vise for clamping of materials
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Quick positioning vise for clamping of materials
  • Semi-automatic bow raises after cut to predetermined height
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
SAP EAN Number Code (UPC)731325265590
Model NumberEHB-1018VMH
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8090
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Gross Weight1210
SAP Weight UnitLBS
SAP Net weight1100
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products891097
Blade Size (In.)1 x .035 x 144
30 Point inspectionJET Elite 30 Point
Bed Height (In.)27
Blade Length (In.)144
Blade Speeds (SFPM)53 - 257
Blade Speed (SFPM)53-257
Blade Wheel Diameter (In.)14
DriveVariable Speed
Electrics2HP, 230/460V/ 3-Ph
End User SellableNo
Gross Weight (Lbs)1144.0000
Gross Weight (Lbs) (Unit)Pound
Head Movement (Deg.)60
Item Display Order1.0000
Motor (HP)2 HP, 230/460V, 3Ph
Net Weight (Lbs.)1034.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)85 x 40 x 44
Overall Height (In.)44
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)10 x 12
Rectangle at 60 Degrees (In.)6 x 5
Rectangle at 90 Degrees (In.)10 x 17
Round at 45 Degrees (In.)10
Round at 60 Degrees (In.)6
Round at 90 Degrees (In.)10
Shipping Weight (Lbs.)1144.0000
Shipping Weight (Lbs.) (Unit)Pound
Square at 45 Degrees (In.)10 x 10
Square at 60 Degrees (In.)5-1/2 x 5-1/2
Square at 90 Degrees (In.)10 x 10
Vise Swivels (Deg.)45
Weight (Lbs.)1144.0000
Weight (Lbs.) (Unit)Pound

Part #: 891080

Price: $14,729.00
