EVBS-26 ELITE EVS 26" VERTICAL BANDSAW

Vertical

<< Back

EVBS-26 ELITE EVS 26" VERTICAL BANDSAW
EVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAW
EVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAW
EVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAW
EVBS-26 ELITE EVS 26" VERTICAL BANDSAWEVBS-26 ELITE EVS 26" VERTICAL BANDSAW

Elite EVS Vertical Bandsaws are the perfect blend of power and balance. Featuring variable speed drive-train with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.

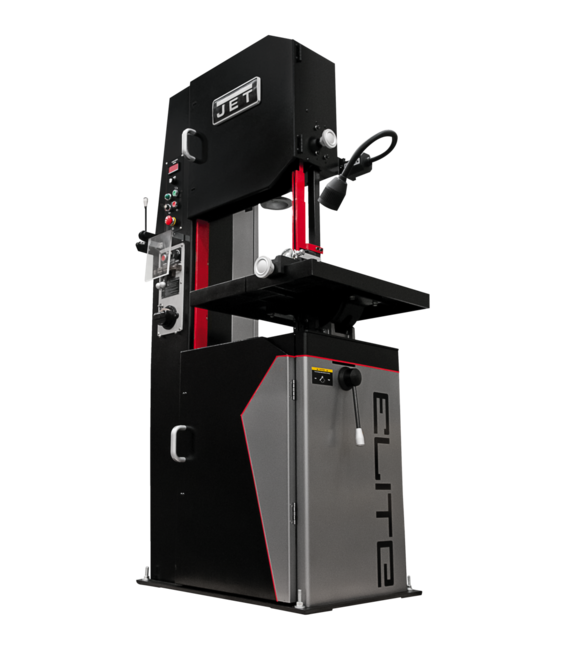

EVBS-26, 26" EVS Vertical Bandsaw

Features & Benefits

  • 4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
  • Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
  • Easily adjustable blade guard for increased safety
  • Handwheel with blade tensioning gauge accurately measures blade pressure to prevent breakage
  • Heavy-duty enclosed steel frame provides strength and rigidity
  • Precisely ground, articulating table with 10 left and 45 right movement for contour cutting at any angle
  • Precision balanced cast-iron blade wheels transmit speed and torque to the blade
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
SAP EAN Number Code (UPC)731325265613
Model NumberEVBS-26
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8090
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Length51
SAP Unit of DimensionIN
SAP Height83.5
SAP Unit of DimensionIN
SAP Width32
SAP Unit of DimensionIN
SAP Gross Weight1741
SAP Weight UnitLBS
SAP Net weight1433
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products891190
30 Point inspectionJET Elite 30 Point
Blade Length (In.)185-1/2
Blade Speeds (SFPM)Variable 50-5000
Blade Width (Min.-Max.) (In.)1/8 - 1
Electrics2HP, 230/460V, 3 Phase
End User SellableNo
Gross Weight (Lbs)1655.0000
Gross Weight (Lbs) (Unit)Pound
Height Capacity (Max.) (In.)14.0000
Height Capacity (Max.) (In.) (Unit)Inch
Item Display Order2.0000
Motor (HP)2HP, 230/460V, 3-Phase
Net Weight (Lbs.)1433.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)51 x 32 x 83-1/2
Overall Height (In.)83-1/2
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Table Height (In.)39-3/8
Table Size (L x W) (In.)27-1/2 x 23-1/2
Throat Capacity (In.)26
Weight (Lbs.)1433.0000
Weight (Lbs.) (Unit)Pound
Welding voltage (V)4.2 KVA Bi-Metal Welder

Part #: 891115

Price: $16,899.00
Quantity:
