40" 3 IN 1 SHEAR BRAKE AND ROLL

Combination Shear, Brake and Roll

<< Back

40" 3 IN 1 SHEAR BRAKE AND ROLL
40" 3 IN 1 SHEAR BRAKE AND ROLL40" 3 IN 1 SHEAR BRAKE AND ROLL40" 3 IN 1 SHEAR BRAKE AND ROLL
40" 3 IN 1 SHEAR BRAKE AND ROLL40" 3 IN 1 SHEAR BRAKE AND ROLL40" 3 IN 1 SHEAR BRAKE AND ROLL
40" 3 IN 1 SHEAR BRAKE AND ROLL

JET innovation allows machine shop professionals the ability to perform several vital tasks with a single compact machine. The Combination Shear, Brake and Roll handles the jobs of three separate machines, adding tremendous versatility to your metal forming operation, without crowding the shop floor. This high-quality triple threat is backed by the JET industry leading Two Year Warranty

SBR-40M, 40" 3 IN 1 Shear, Brake and Roll

Features & Benefits

  • Brake is equipped with easily removable fingers that permit angle, channel, box, and other complex bending operations
  • Combination shear, brake, and roll in one compact machine

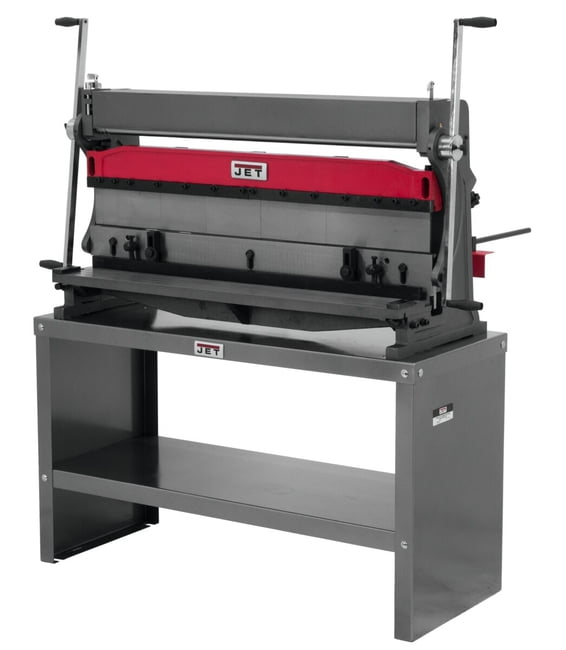

  • Combination shear, brake, and roll in one compact machine (shown with optional stand)
  • Right or left hand operation
  • Shear can be used for mild steel, aluminum, brass, copper, lead, plastic and zinc
  • Slip rolls are precision turned and ground with wire grooves
SAP EAN Number Code (UPC)662756214508
Model NumberSBR-40M
SAP Base Unit of MeasureEA
SAP Commodity Code8203.40.3000
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length56
SAP Unit of DimensionIN
SAP Height30
SAP Unit of DimensionIN
SAP Width56
SAP Unit of DimensionIN
SAP Gross Weight632
SAP Weight UnitLBS
SAP Net weight575
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (L x W x H) (In.) (English United States, Ecommerce)16-1/2 x 43
Bending Capacity (Gauge)20.0000
End User SellableNo
Item Display Order2.0000
Mild Steel Capacity (Gauge)20.0000
Minimum Forming Radius (In.)1
Overall Dimensions (L x W x H) (In.)56 x 23 x 30
Prop 65Cancer and Reproductive Harm
Rolling Capacity (Gauge)20.0000
Shearing Capacity (Gauge)20.0000
Size of Slip Roll (L x Dia.) (In.)40 x 1-5/8
Style (Type)Combination
Upper Die Height (In.)4-3/4
Weight (Lbs.)575.0000
Weight (Lbs.) (Unit)Pound

Part #: 756041

Price: $2,119.00
