40" x 12Ga Box & Pan Brake Foot Clamp

Brakes

<< Back

40" x 12Ga Box & Pan Brake Foot Clamp
40" x 12Ga Box & Pan Brake Foot Clamp40" x 12Ga Box & Pan Brake Foot Clamp40" x 12Ga Box & Pan Brake Foot Clamp
40" x 12Ga Box & Pan Brake Foot Clamp40" x 12Ga Box & Pan Brake Foot Clamp40" x 12Ga Box & Pan Brake Foot Clamp
40" x 12Ga Box & Pan Brake Foot Clamp40" x 12Ga Box & Pan Brake Foot Clamp

Precision and durability with innovative ergonomic features ensures ongoing accuracy and operation, without user fatigue.

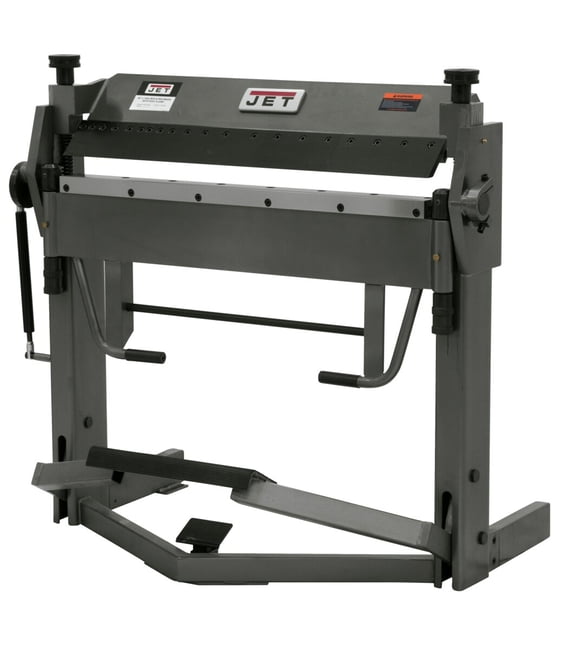

BPF-1240, 40" x 12 Gauge Box & Pan Brake With Foot Clamp

Features & Benefits

  • Air spring to assist in raising the clamping handle
  • All body sections are welded steel plate
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Black Ceramic Coated Fingers prevent rust and ensure longer finger life
  • Material clamping is foot operated to save strain on back and arms
  • Stop rod for repeat bending
SAP EAN Number Code (UPC)731325197488
Model NumberBPF-1240
SAP Base Unit of MeasureEA
SAP Commodity Code8462.29.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length58
SAP Unit of DimensionIN
SAP Height50
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight705
SAP Weight UnitLBS
SAP Net weight705
SAP Weight UnitLBS
SAP Transportation GroupLTL
Bending Length Capacity (In.)40.0000
Bending Length Capacity (In.) (Unit)Inch
End User SellableNo
Finger Nose Angle (Deg.)42
Item Display Order4.0000
Maximum Box Depth (In.)2-1/2
Maximum Lift of Beam (In.)1-7/8
Mild Steel Capacity (Gauge)12.0000
Nose Radius (In.)1/32
Number and Width of Fingers (In.)1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10-5/8
Overall Dimensions (L x W x H) (In.)58 x 25 x 50
Prop 65Cancer and Reproductive Harm
Style (Type)Floor Box and Pan
Weight (Lbs.)705.0000
Weight (Lbs.) (Unit)Pound

Part #: 752125

Price: $3,649.00
