50" x 14Ga Box & Pan Brake Foot Clamp

Brakes

Precision and durability with innovative ergonomic features ensures ongoing accuracy and operation, without user fatigue.

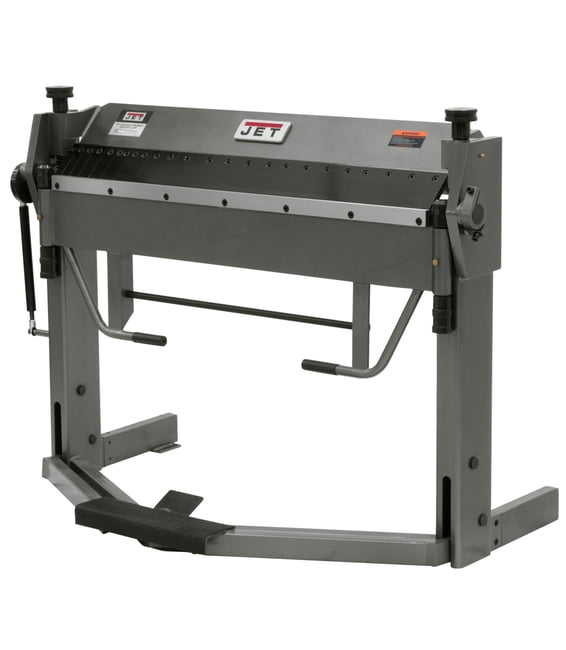

BPF-1450, 50" x 14 Gauge Box & Pan Brake With Foot Clamp

Air spring to assist in raising the clamping handle
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Black Ceramic Coated Fingers prevent rust and ensure longer finger life
Material clamping is foot operated to save strain on back and arms
Stop rod for repeat bending
Wide assortment of finger widths allow greater versatility in the shop

SAP EAN Number Code (UPC)	731325197495
Model Number	BPF-1450
SAP Base Unit of Measure	EA
SAP Commodity Code	8462.29.0020
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	50
SAP Unit of Dimension	IN
SAP Height	67
SAP Unit of Dimension	IN
SAP Width	28
SAP Unit of Dimension	IN
SAP Gross Weight	900
SAP Weight Unit	LBS
SAP Net weight	900
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Bending Length Capacity (In.)	50.0000
Bending Length Capacity (In.) (Unit)	Inch
End User Sellable	No
Finger Nose Angle (Deg.)	42
Item Display Order	5.0000
Maximum Box Depth (In.)	2-1/2
Maximum Lift of Beam (In.)	1-7/8
Mild Steel Capacity (Gauge)	14.0000
Nose Radius (In.)	1/32
Number and Width of Fingers (In.)	1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8
Overall Dimensions (L x W x H) (In.)	67 x 28 x 50
Prop 65	Cancer and Reproductive Harm
Style (Type)	Floor Box and Pan
Weight (Lbs.)	900.0000
Weight (Lbs.) (Unit)	Pound

Part #: 752127

Price: $4,109.00

Quantity:
